This project is licensed under the GPL v3 here, on my repo its cern-ohl-s-2, the difference is because pcbway does not offer cern-ohl-s.

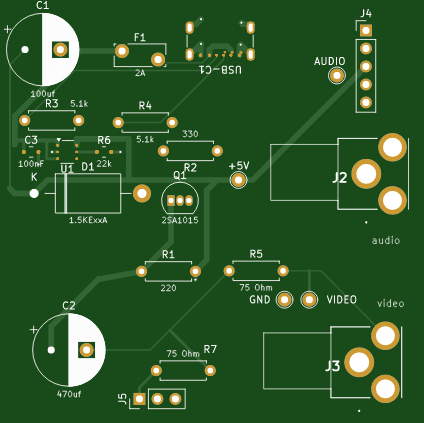

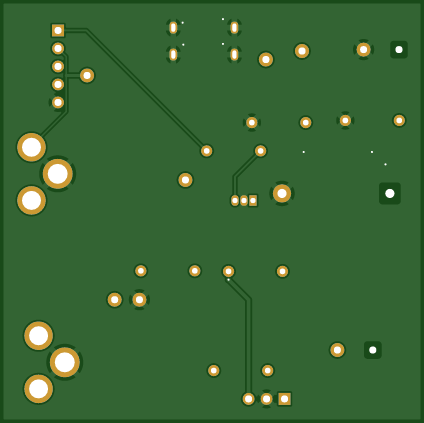

Replaces the RF can the NES uses to create power and video/audio on your front loader nes. Nintendo's design here is pretty crappy, First off because of heat the caps inside tend to cook themselves. Also it's not a very well designed circuit.
Link to video is a minimal design that uses a usb c input to power the console. It adds protection that the original NES didn't have and it also adds a head for RGB support.
Link to video
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
