Lightfoot V3 LEFT Dropout adapter
YOU ALSO NEED TO BUY A RIGHT!

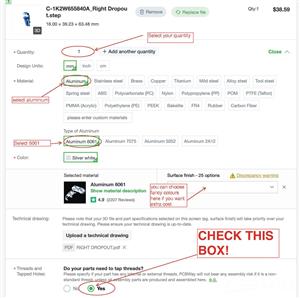

When purchasing;
- Select your quantity.
- material
- aluminium
- 6061
- Check the box, the part has threads!

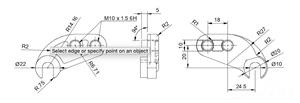

- There is a .pdf attached to the design that gives the thread specs for the CNC guy.
- You just need to check the box
2x, M10x1.5, 18~20mm long bolts needed - here
or search online.

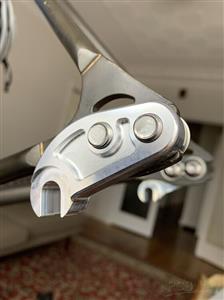

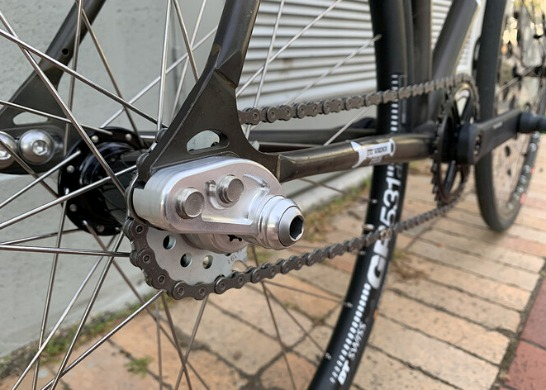

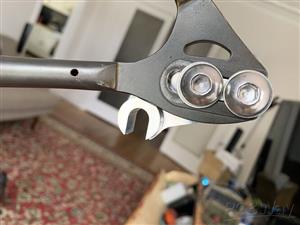

Lightfoot V3 650b rear dropout adapter to convert 700c to 650b rear end.
20mm drop maintains the BB height and frame geometry. 20mm forward tucks the rear wheel right under you for better stability.
https://poloverse.net/t/custom-dropouts-for-converting-700-rear-to-650/1169
wanna try a 650b front wheel??
https://www.pcbway.com/project/shareproject/650b_Crown_race_adaptor_efe08329.html
Get some kneecups!
