Components
|
|
Atmega328 |
x 1 | |
|
|
8x8 LED MATRIX best is KWM-20881ABB BLUE |
x 1 | |
|
|
PIEZO SPEAKER |
x 1 | |
|
|
BATTERY HOLDER CR2032 |
x 1 | |
|
|
Tactile switch |
x 3 |
Description
LedCade - μ arcade game cabinet - 8x8 LED matrix
STAY TUNED I WILL PERNAMENTLY UPDATE DESCRIPTION
1. WARNING !
- Not working on coins, need COIN BATTERY !
2. WARNING !
- EXTREMELY SIMPLE !!!! only 4 COMPONENTS = Atmega328+LED matrix+speaker+Buttons
3. WARNING !
- Arduino compatible source code
Games:
- pong
- falling stars
- invades
- snake
- breakout
- car race
- tetris
- jump arcade
Features:
- Single atmega328, arduino code
- Direct driving matrix
- Piezo speaker
- CR2032 battery power aka COIN :)
- 3 Buttons
- red, green or blue matrix
- score counting
- some voices (Talkie library)
SCHEMATIC IS IN GALLERY :)
SOURCE code on GITGUB
I am not author of games, just hardware designer. I glued games from internet,
modify them to work with direct driven matrix,
add sounds&voices, graphics, power management
Code
https://github.com/bobricius/Ledcade
Dec 05,2020
4,293 viewsReport item

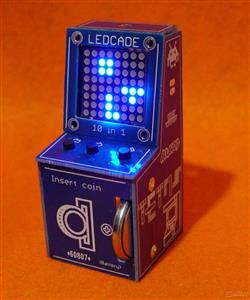

LedCade - μ arcade game cabinet - 8x8 LED matrix
(1x PCB order = complete product)
8 classic retro games on 8x8 led matrix
Entire build from single PCB board ;-)
4293
22
3
9.83 (3)
Published: Dec 05,2020
