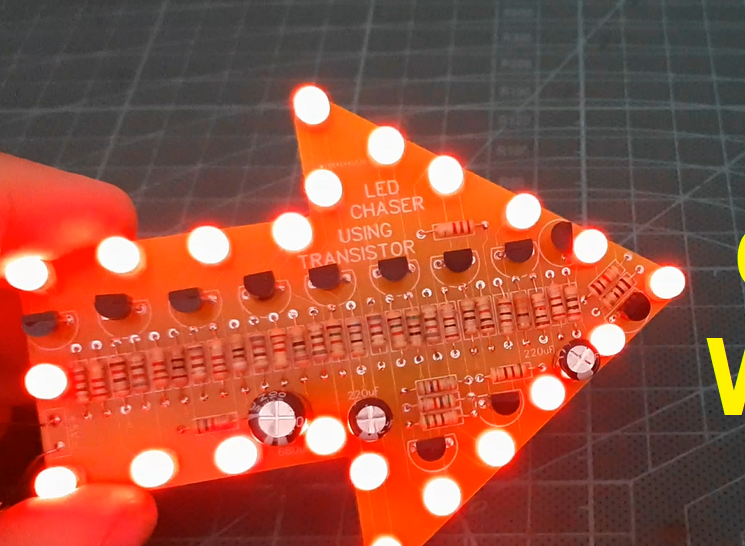

LED Chaser Without IC By Using Transistors Only
This circuit is LED Chaser Without IC By Using Transistors Only.
YouTube Video: https://www.youtube.com/watch?v=AdrmIGFP-WY&feature=push-u-sub&attr_tag=X_yosfkPUH8iWfXU%3A6
Parts list:
Transistors (12pcs)
LED (22pcs)
Capacitor 220uF (2pcs)
Capacitor (680uF)
Resistor 1K (10pcs)
Resistor 2K (10pcs)
Resistor 510R (2pcs)
Resistor 5.6K (2pcs)
Resistor 10R
Resistor 20R
Resistor 33R
Resistor 47R
Resistor 51R
Resistor 68R
Resistor 75R
Resistor 91R
Resistor 100R
Resistor 120R
Dec 19,2019
3,437 views
LED Chaser Without IC By Using Transistors Only

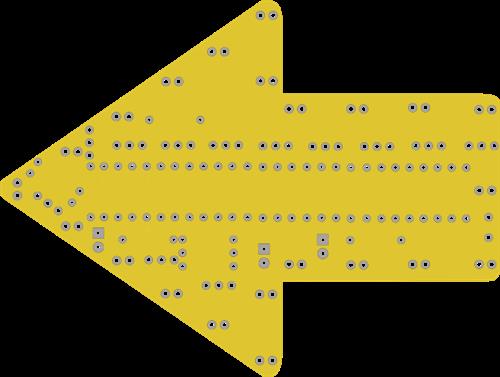

2 Layers PCB 76 x 100 mm FR-4, 1.6 mm, 1, HASL with lead, Yellow Solder Mask, White silkscreen
