Logic Gate Training kit without IC

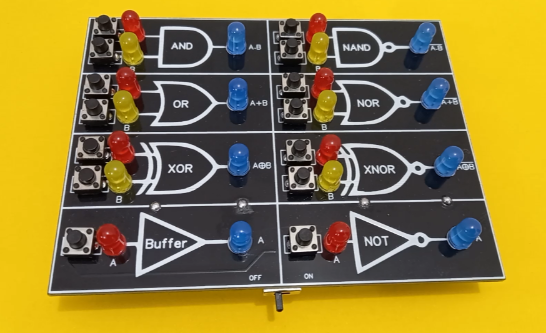

This is an Educational Logic Gate Training kit on PCB Without using IC, By using Diode and Transistor.
Circuit and parts list: https://www.mousa-simple-project.com/2026/01/educational-logic-gate-training-kit.html
YouTube video: https://youtu.be/APDebX_iuvk
Jan 11,2026
32 views
Logic Gate Training kit without IC

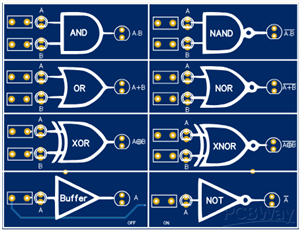

2 Layers PCB 76.5 x 100 mm FR-4, 1.6 mm, 1, HASL with lead, Black Solder Mask, White silkscreen
