Components

	Raspberry Pi Zero 2 W	x 1

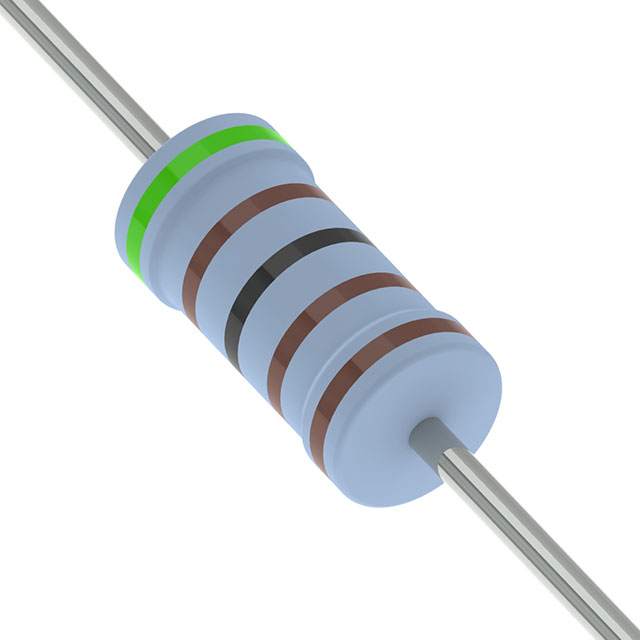

	MFR-25FTF52-560R Yageo	x 3

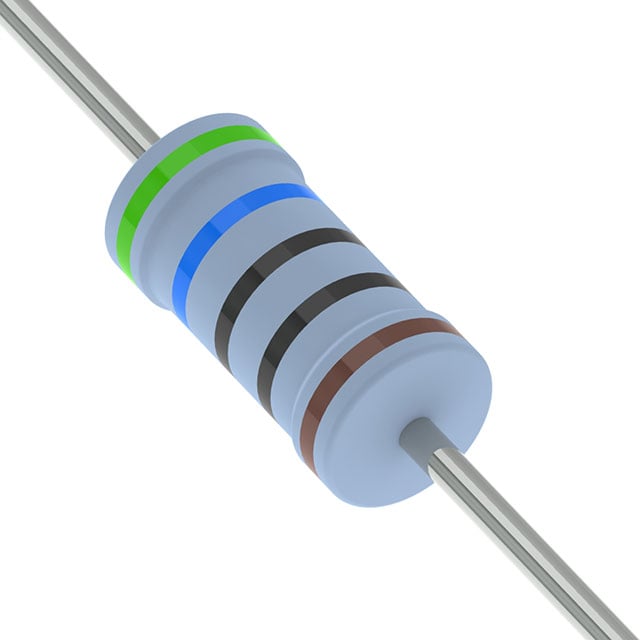

	MFR-25FTF52-5K1 YAGEO	x 4
	2-Pin Screw Terminal Block	x 4

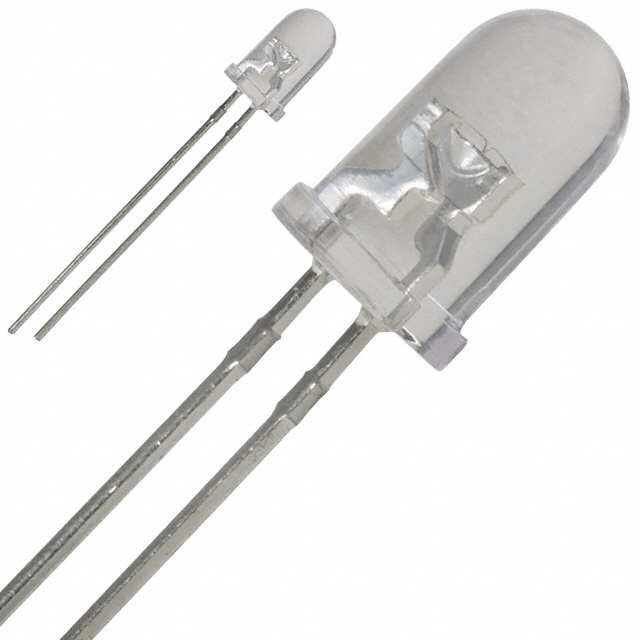

	OVLFB3C7 TT Electronics/Optek Technology	x 3

Tools, APP Software Used etc.

KiCAD

Kicad

Description

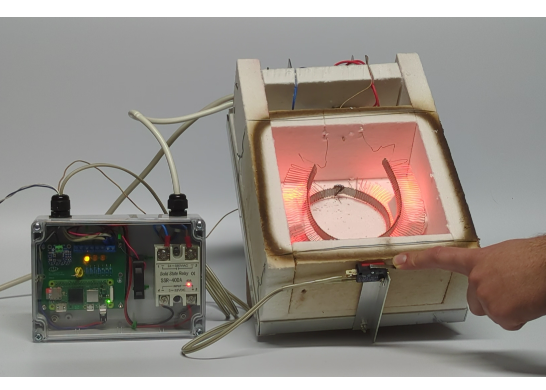

Kiln controller breakout

An open source kiln controller that provides a web interface to make, save, and run temperature profiles.

The board breaks out a Raspberry Pi Zero 2 W to connect it to a thermocouple reader and a solid state relay.

The project allows you to tune any kiln via a linux/python PID curve fitting programs :)

Additional headers are broken out for not just heating but also cooling equipment, if implemented.

Disclaimer: all electrical work must comply with local standards, regulations, and required licenses.

Source repo:

https://github.com/jbruce12000/kiln-controller/tree/main

My Derived repo:

https://github.com/GoatNote/kiln-controller/tree/main

Code

Repo

https://github.com/GoatNote/kiln-controller/tree/main

Schematic and Layout

Repo

https://github.com/GoatNote/kiln-controller/tree/main

Download Gerbers

Jun 13,2026

7 views

Kiln controller breakout

Control a kiln with an open source repository from JBruce12000. Features tuning, status LEDs, and moves assembly off the breadboard.

Published: Jun 13,2026

Standard PCB

Download Gerber file 0

PCBWay Donate 10% cost To Author

Only PCB

Add to cart

*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.

Copy this HTML into your page to embed a link to order this shared project

Copy

Under the CERN-OHL-P-2.0 License.
