Description

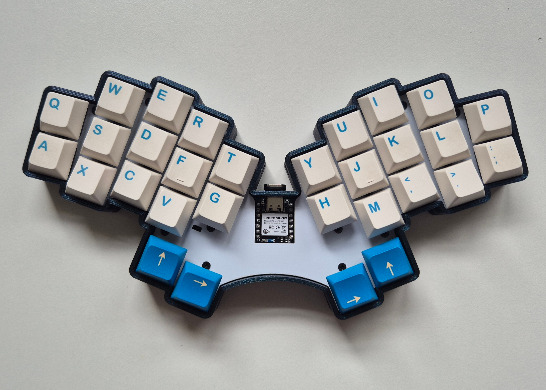

Katori - 30-key wireless topre/ec hummingbird keyboard
30-key wireless topre/ec hummingbird keyboard based on the rufous & topreviung
named after katori senkō mosquito coils that inspired the original conical spring design for topre switches, as well as katori's translation to bird as homage to the hummingbird.
Handsolderable if you have skill, pcba also available.
Please read github repo before ordering. Plate is necessary.
Code
GitHub
https://github.com/grassfedreeve/katori
Mar 09,2025
653 views
Katori - 30-key wireless topre/ec hummingbird keyboard
30-key wireless topre/ec hummingbird keyboard
653
2
0
Published: Mar 09,2025
Standard PCB
Download Gerber file 5
BOM(Bill of materials)
Centroid file
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-NonCommercial-ShareAlike (CC BY-NC-SA)
License.
