Sean Johnston
UNITED STATES OF AMERICA • + Follow
Tools, APP Software Used etc.
|
KiCADKicad
|
Description
KB1v8.1.kicad_pcb

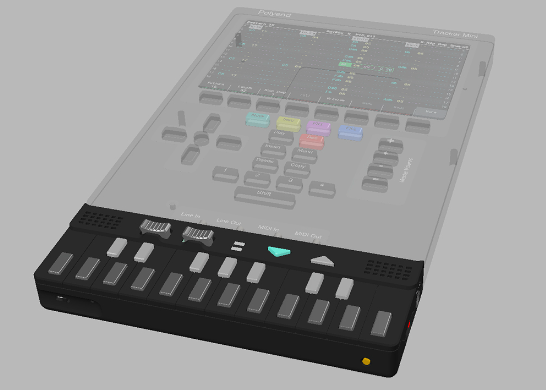

A pocket size midi keyboard controller with mini speakers for the Polyend Tracker Mini.
Use PCBWAY to assemble all the SMT components.
See THT BOM for all through hole parts.
See GitHub project for PCB assembly instructions as well as the CAD files.
Code
Pocket Midi KB1
https://github.com/PocketMidi/KB1
Schematic and Layout
Schematic
KB1v8.1.pdf

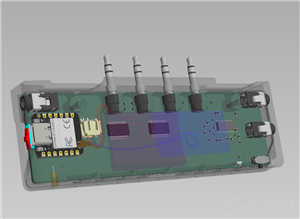

CAD-Custom parts and enclosures
STEP file
KB1 v10.9.stp
Jul 13,2025
658 views

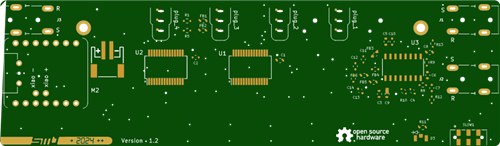

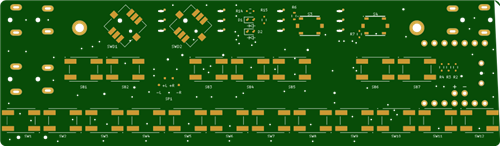

KB1v8.1.kicad_pcb
2 Layers PCB 84 x 126 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
A pocket size midi keyboard controller with mini speakers for the Polyend Tracker Mini
658
4
0
Published: Jul 13,2025
Standard PCB
Download Gerber file 5
BOM(Bill of materials)
Centroid file
PCBWay Donate 10% cost To Author
File Last Updated: 2025/08/06 (GMT+8)
File update record
2025-08-0611:10:08
Parts List (BOM) is updated.
2025-08-0611:01:12
Parts List (BOM) is updated.
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
