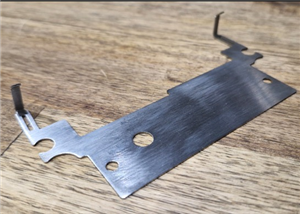

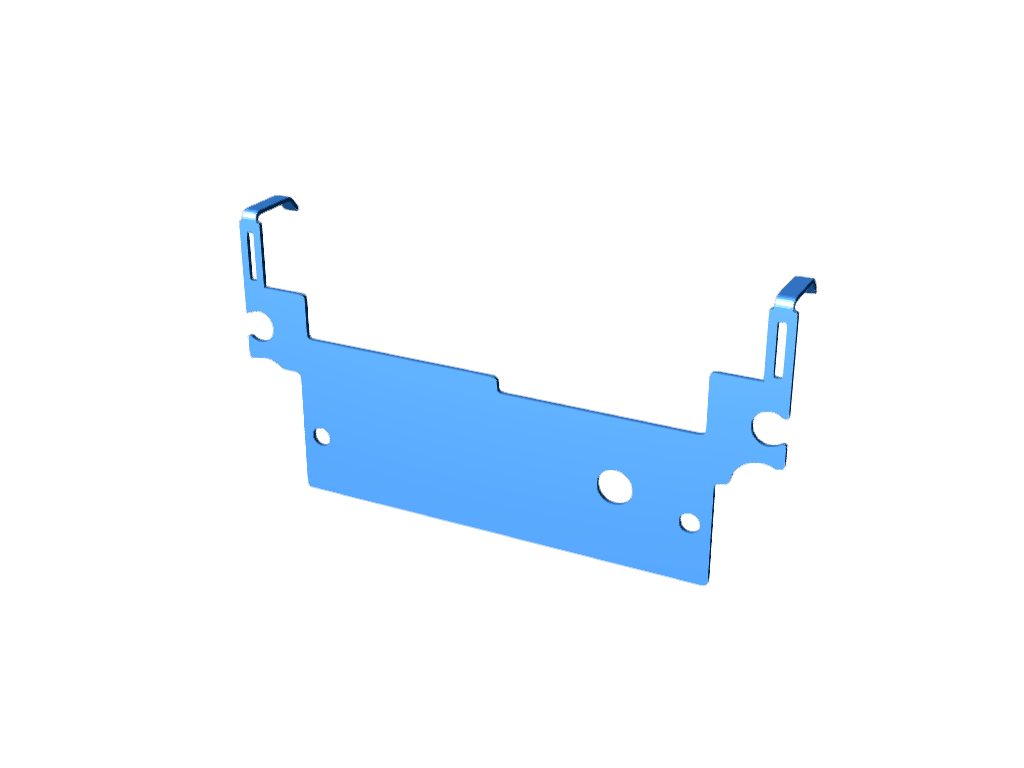

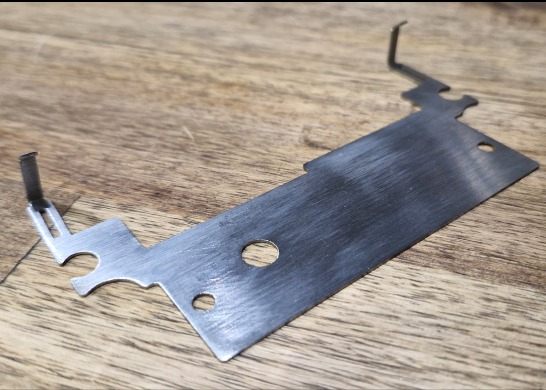

This was my take on a fix for the dreaded cup holder failure in the first generation Aristo/GS300, which due to broken plastic tabs would result in cup holders being ejected dramatically out of the center console. My solution was a sheet metal bracket that is sandwiched inside the cupholder assembly itself with tabs to replace the original plastic ones.

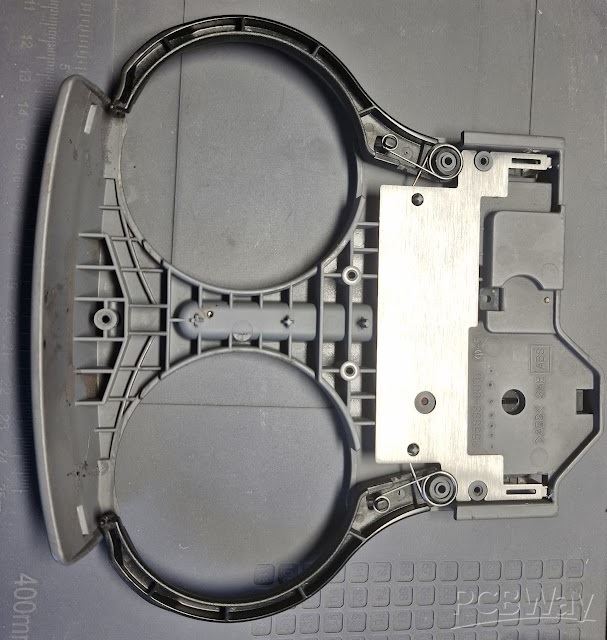

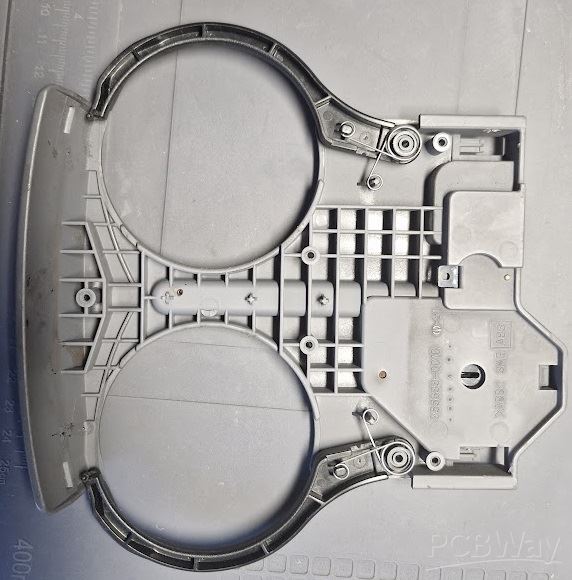

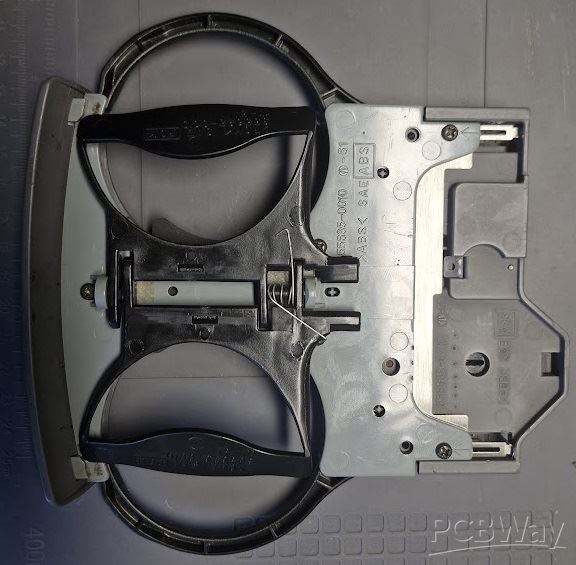

The install requires removal of the cupholder assembly from the center console and partial disassembly as shown in the photos.

Note: You may need to remove one of the original plastic tabs for clearance, as only one may have broken, or has only partially broken.

DISCLAIMER: This has not been thoroughly tested, and it is entirely possible there are variations of the JZS147 that this is incompatible with.

Manufacturing Parameters

Design Units: mm

Material: Stainless Steel 304

Thickness: 0.8mm

Everything else standard/default.
