Interton VC4000 Multicart

If you have an Interton VC4000 console or one that is directly compatible and you want to play games not in your collection, games not released for this version of the console (like Frogger or Missile Command) or homebrew games, or maybe you want to develop homebrew for the system yourself, this project is for you.

It is a minor revision to the VC4000 multicart I already uploaded to PCBWay on 20.5.2024 and it works fine. There is a redundant trace that goes nowhere which is fixed in this revision, I made the power traces wider and the component values are now helpfully printed on the silkscreen.

The cartridge does not support games that require extra RAM. Only very few games do this and I'd argue they aren't worth it.

Schematic and Layout

(the schematics didn't change from the initial version)

vc4kcart.kicad_sch

Download Gerbers Download BOM(Bill of materials)

Jan 05,2026

78 views

Interton VC4000 Multicart

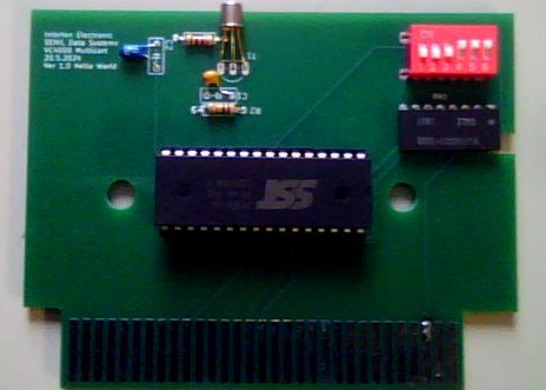

A simple multicart for the Interton VC4000 / AVPS video games system from 1978.
