Honda CBR250RR MC22 90-96 Rear Suspension Link Arm
Replacement part for Honda ARM ASSY.,CUSHION, 52470-KAZ-000.
Fits: Honda CBR250RR MC22 1990-1996 motorcycle
Does not include needed bearings, seals or collars. You need to use the old ones or buy new.

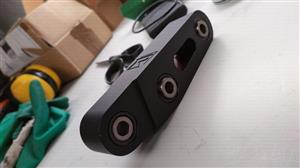

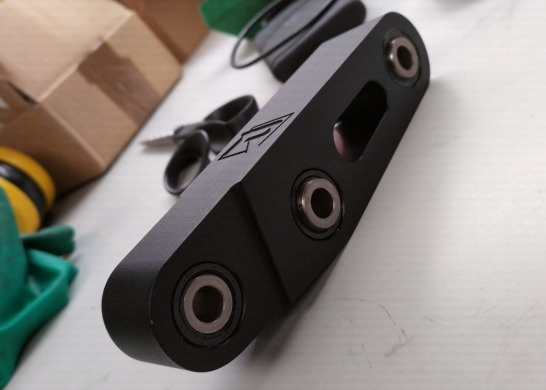

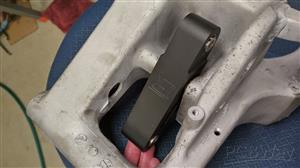

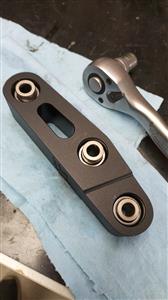

Test fitted with all the bearings, seals and collars. No issues.
The needle roller bearings you will need:
2x "HMK1725" - 17x24x25 (mm)
1x "HMK1720" - 17x24x20 (mm)

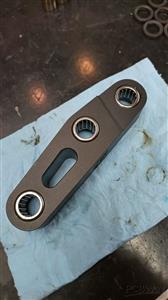

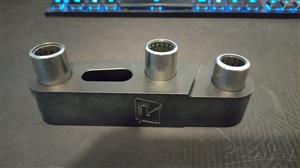

Installing the bearings to the linkrod:
CAD-Custom parts and enclosures

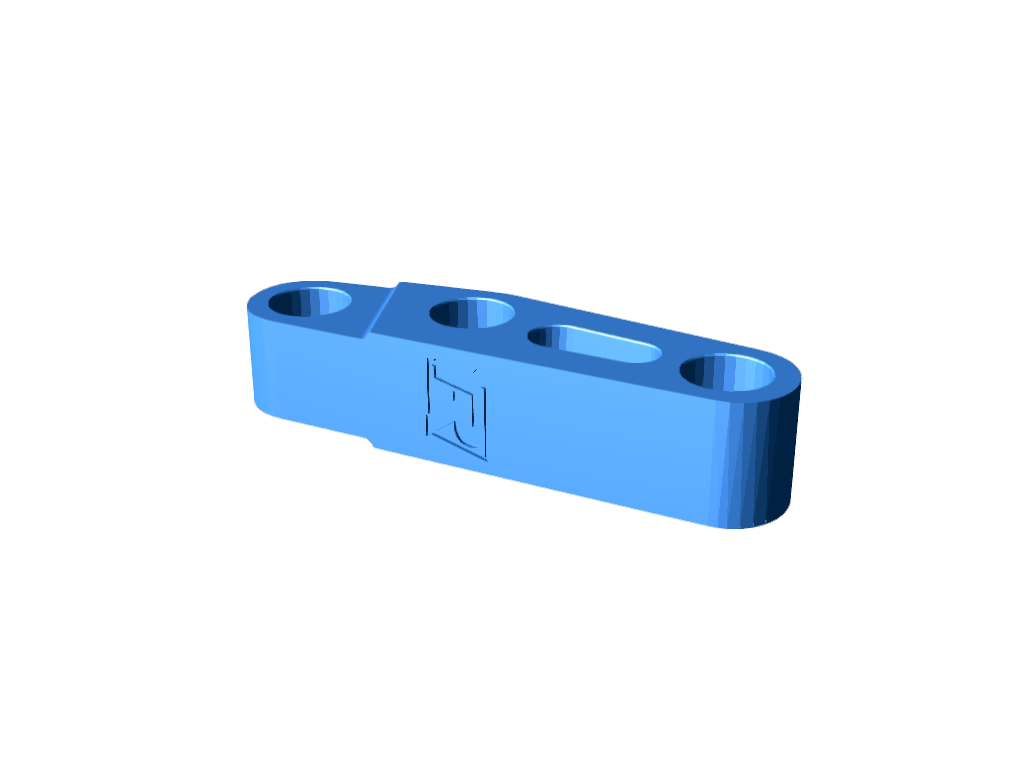

C-CN3W870816A_CBR250RR Link v12 - carved
C-CN3W870816A_CBR250RR Link v12 - carved.step
May 01,2025
