Description

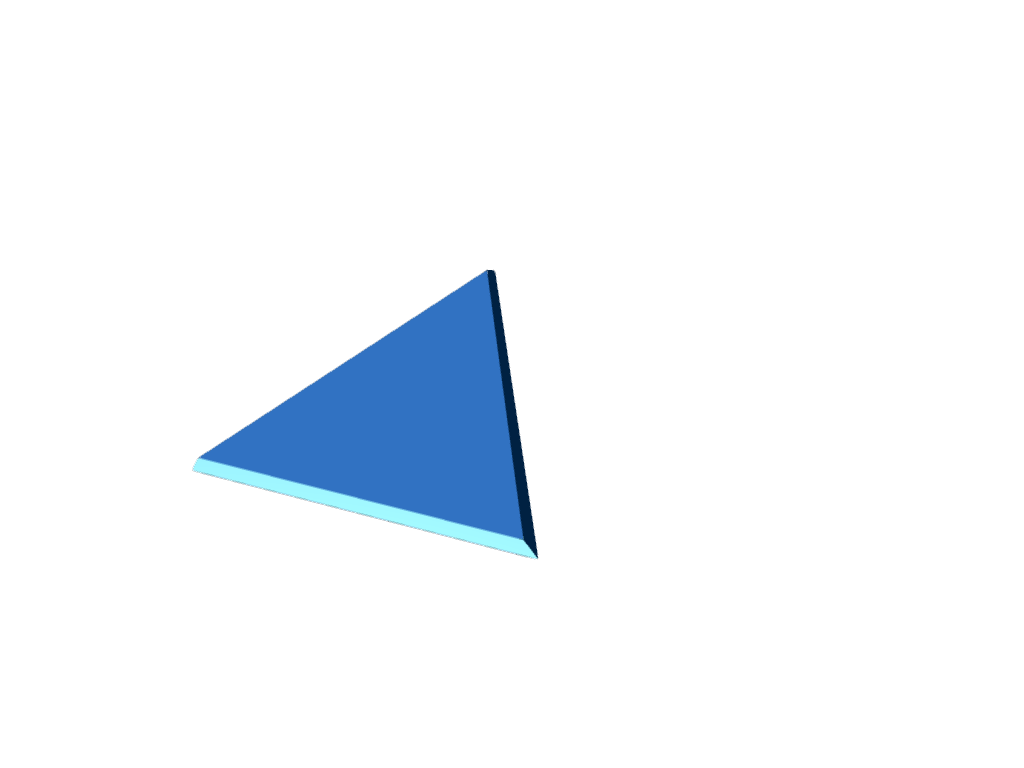

High Performance Model Rocket Fin
This product is a fin designed to be placed onto the supersonic 18mm model rocket kit I am developing, here I am selling parts so you too can help test this out. These fins are to be made from HP PA12 Nylon, and the weight is planned to be 0.5g per fin. If you want to build one of your own to test just look for the next parts I share, and for some base information. You will need a Aerotech Q-Jet D20-8W 18mm Rocket motor. Thank you for considering my Model.
CAD-Custom parts and enclosures
Rocket Fin
Part Studio 1 - Part 1.step
Aug 30,2025
163 views
High Performance Model Rocket Fin
This is designed for my supersonic 18mm model rocket kit that is soon to be made, it is high Performance and durable HP PA12 Nylon, Spares.
163
0
0
Published: Aug 30,2025
