Components

1. 2×10KΩ resistor 1/4W.

2. 2×200KΩ resistor 1/4W.

3. 1×100KΩ resistor 1/4W.

4. 1×150KΩ resistor 1/4W.

5. 1×2.2KΩ resistor 1/4W.

6. 1×4.7KΩ resistor 1/4W.

7. 1×15KΩ resistor 1/4W.

8. 1×680Ω resistor 1/4W.

9. 3×Capacitor 0.1uF(104).

10. 1×Capacitor 470pF(471).

11. 1×Capacitor 100pF(101).

12. 1×Capacitor 10nF(103).

13. 1×Capacitor 22pF(22).

14. 1×1uF capacitor 50V.

15. 2×1000uF capacitor 25V.

16. 4×Diode 1N4007.

17. 1×LED 3 mm.

18. 1×L7812 +V Regulator.

19. 1×L7912 -V Regulator.

20. 1×4558D/ NE5532/ TL072 IC.

21. 1×2 pin connector base 2.54 mm.

22. 2×3 pin connector base 2.54 mm.

23. 2×100K Single-Turn Potentiometer

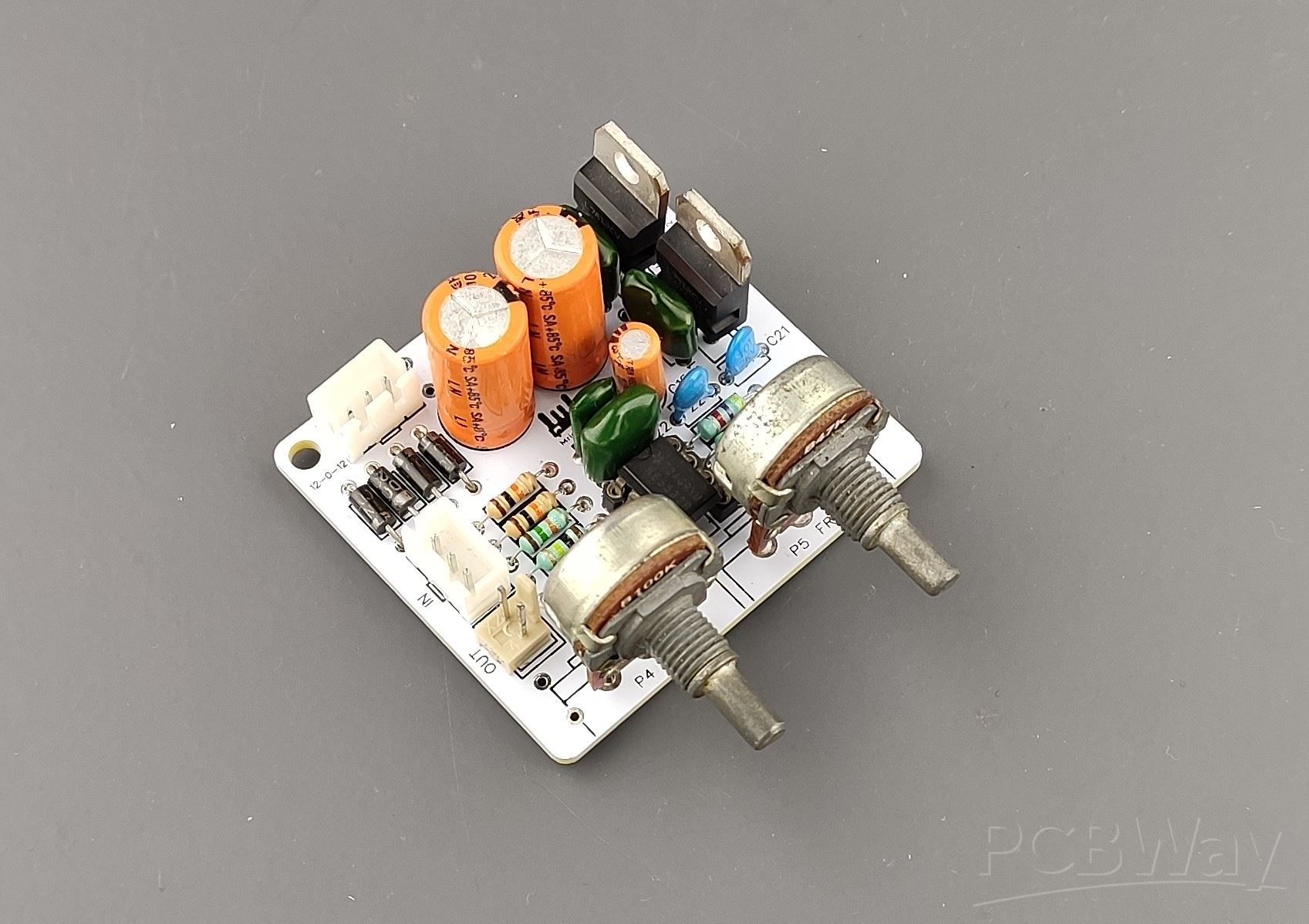

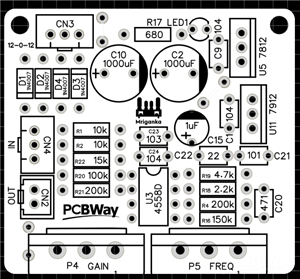

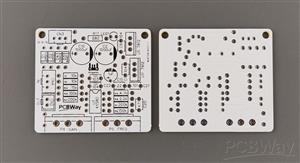

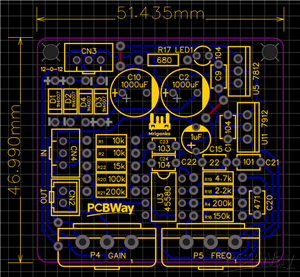

Hello Friends, in this post, I make a high-pass filter. You can use this high-pass filter with any amplifier. For this high-pass filter, I have used NE5532 IC. However, instead of NE5532 IC, you can also use TL072 or 4558D IC. In this high-pass filter, you can only control the high frequency.
