Components

	Axial Fast Glass Fuse With lead Wire 3X10 - 0.5A 250V	x 1
	Battery Holder CR2032	x 1
	Diode Automatic Flashing LED Flash Control Blinking	x 2

Description

Goodies arduiblog.com for Maker Faire Paris 2026

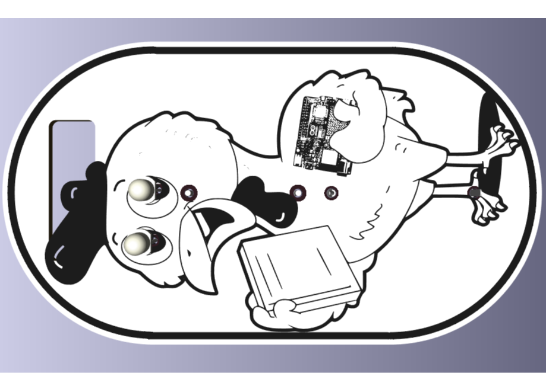

Solder the battery holder and fuse to the back of the board and place the flashing LEDs in the chicken's eyes.

Be careful not to solder the LEDs backwards; the longer leg should go in the top hole (marked with a circle) and the shorter leg in the bottom hole (marked with a square).

-------------------------------------------------------

Soudez le support de pile et le fusible au dos de la carte et placez les LED clignotantes dans les yeux du poulet.

Attention à ne pas souder les LED à l'envers, la patte la plus long doit être dans le trou du haut (avec un rond) et la plus courte dans le trou du bas (avec un carré).

Download Gerbers

Mar 26,2026

8 views

Goodies arduiblog.com for Maker Faire Paris 2026

DIY solder badges offered as gifts to visitors. Des badges à souder soi-même offerts en cadeau aux visiteurs.

Published: Mar 26,2026
