Tools, APP Software Used etc.

	KiCad 9.0
	esptool Espressif

Description

GameboyHandheldV1

Gameboy Handheld V1

A powerful, homemade portable retro gaming console powered by the ESP32-S3.

Designed to run Retro-Go firmware — it becomes a true all-in-one classic gaming & music device.

Full-speed emulation of:

• Game Boy, Game Boy Color, NES

• Many SNES titles

• Sega Master System, Game Gear, SG-1000

• PC Engine / TurboGrafx-16

• Atari Lynx, 2600, 7800

• Neo Geo Pocket / Color

• WonderSwan / Color

• Game & Watch

• Plus: Doom, ZX Spectrum, MSX, ColecoVision

Highlights:

• 2.4" vibrant color screen (240×320)

• Complete controls: D-pad, A/B/X/Y, L/R shoulders, volume buttons, power

• Stereo audio via PAM8403 amp

• Built-in MP3/WAV music player from SD card

• Beautiful launcher with box art, recent games & favorites

• Save states & quick in-game menu

• Adjustable brightness, volume & screen scaling

A fun, capable retro handheld that plays your favorite classic games and music!

Code

RetroGo

https://github.com/ducalex/retro-go

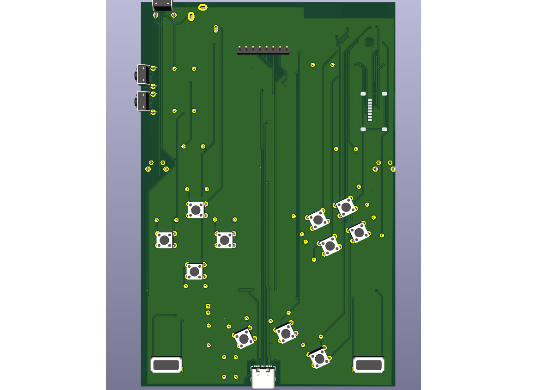

Schematic and Layout

Schematic

Gameboy_Handheld_V1.kicad_sch

Download Gerbers Download BOM(Bill of materials)

Mar 13,2026

18 views

GameboyHandheldV1

2 Layers PCB 148.5 x 98.5 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen

A ESP32 Gameboy And Music Player

Published: Mar 13,2026

Standard PCB

Download Gerber file 1

BOM(Bill of materials)

Centroid file

PCBWay Donate 10% cost To Author

Only PCB

PCB+Assembly

Add to cart

*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.

Copy this HTML into your page to embed a link to order this shared project

Copy

Under the Attribution-ShareAlike (CC BY-SA) License.
