FloKaSon caruso dummy head

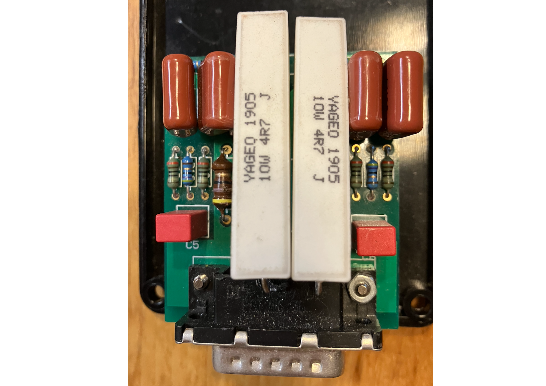

the dummy head is easy to build. start with the low profile resistors R4,R6,R8,R9,R12 and R5, R7,R10,R11,R13.
then populate the Caps and the DB15 connector and finally the 4.7ohm 3-5W Resistors.

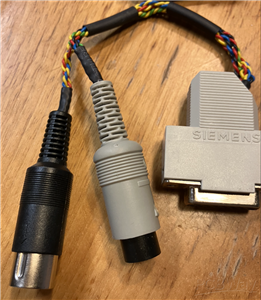

check the DB15 to DIN connection in the pdf above. this is only needed if you use a standard
FLoKaSon AM44 or Neumann SA32,SA66,SA74 ,SA78,SA82 suspension box.
Schematic and Layout
caruso dummyschematics
caruso_dummy_schematics_v1.pdf
Sep 17,2025
204 views
FloKaSon caruso dummy head
this PCB is for a dummy head to check the performance of cutterhead feedback amplifiers like Caruso Project, Neumann SAL74, Ortofon
