Sid Rockett
CZECH REPUBLIC, THE • + Follow
Description
Far Field 2

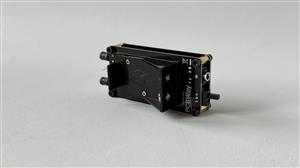

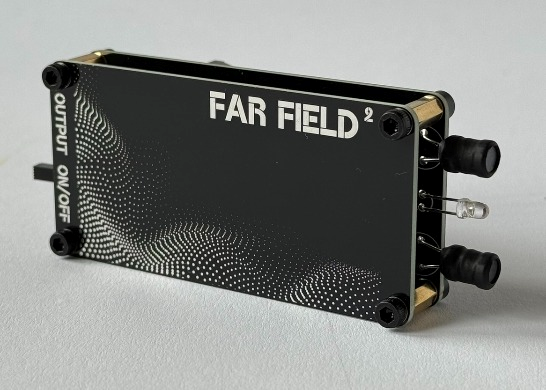

Far Field is portable device for electromagnetic listening. Inspired by Elektrosluch made by Jonáš Gruška from LOM Instruments. It allows You to discover hidden sounds of electromagnetic fields that surrounds us. Just plug your headphones and look around you. It is powered by single 9V battery (not included). It has stereo 3.5mm and outputs jacks.
Aug 29,2025
194 views
Far Field 2
Far Field is a device for electromagnetic listening.
194
1
1
Published: Aug 29,2025
Standard PCB

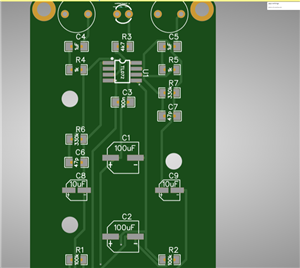

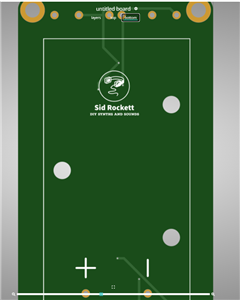

Download Gerber file 2
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
File Last Updated: 2025/09/20 (GMT+8)
File update record
2025-09-2002:25:40
Parts List (BOM) is updated.
2025-09-2002:25:40
Gerber file is updated.
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
