Exeltel exelvision exl 100 rom cartridge simplified

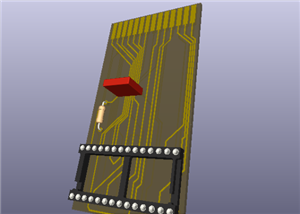

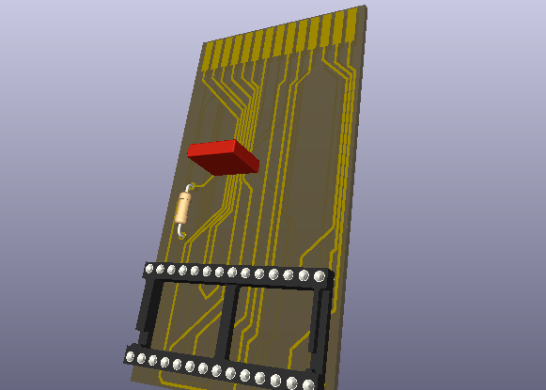

exeltel cartridge for 27c256 eprom
exeltel exl 100, i had no basic catridge to test it, so i made one.
Idea is to make it without vias, so i can use my CNC to mill PCB. I just added a pullup resistor and a cut jumper, so i can use 27c128 or 27c64 eproms too (not tested yet). Just make sure that when inserted, the eprom faces down (bottom of PCB marked with the letter B is facing up.
https://github.com/yo5ptd/exeltel
Jul 07,2026
15 views
Exeltel exelvision exl 100 rom cartridge simplified
Simplest rom cartridge
15
0
1
Published: Jul 07,2026
Standard PCB
Download Gerber file 0
PCBWay Donate 10% cost To Author
File Last Updated: 2026/07/07 (GMT+8)
File update record
2026-07-0723:11:12
Gerber file is updated.
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
GNU - GPL
License.
