Chad Ross

UNITED STATES OF AMERICA • + Follow Edit Project

Commodore Bench

UNITED STATES OF AMERICA
- 3
- 3
1

Components

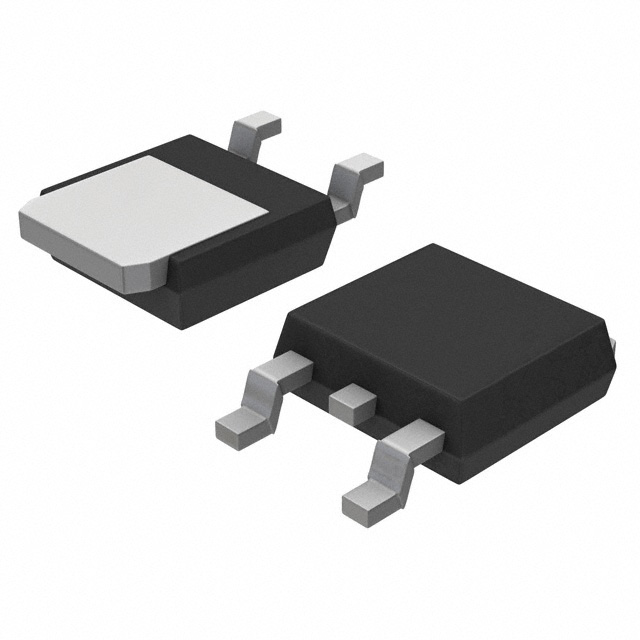

	MC79M05CDTRKG onsemi	x 1
	SLR-56VRT32 Rohm Semiconductor	x 4

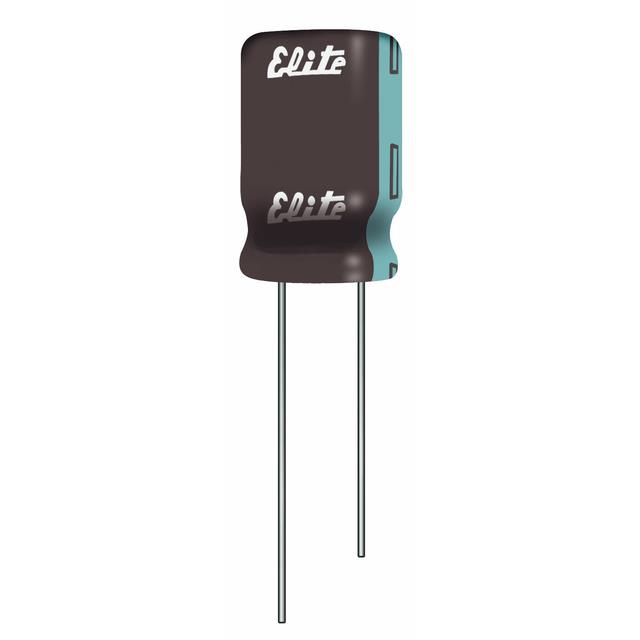

	ED1V100MP20511U Chinsan (Elite)	x 2

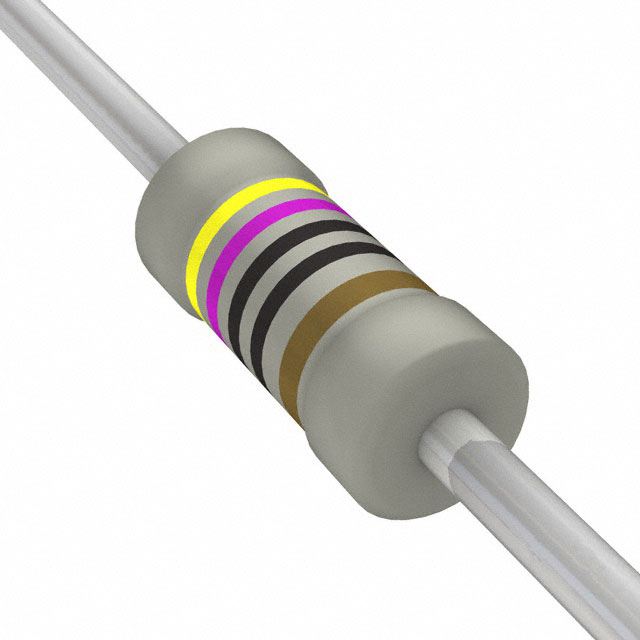

	LR1F330R TE Connectivity Passive Product	x 2

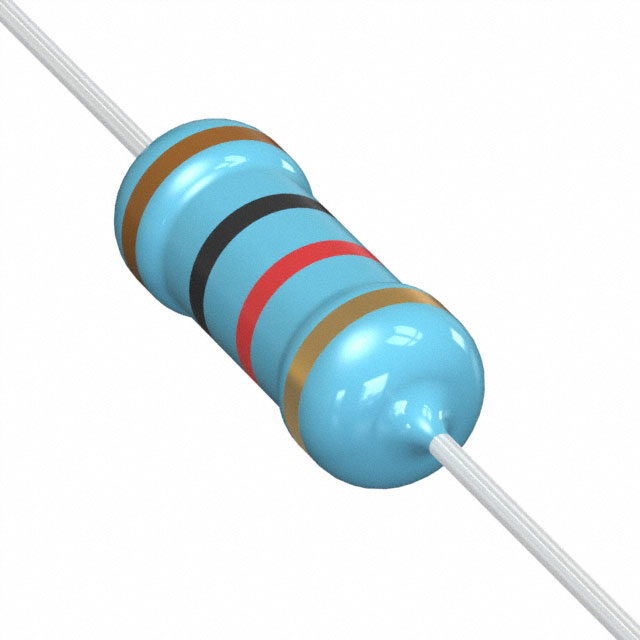

	ROX3SJ1K0 TE Connectivity Passive Product	x 2

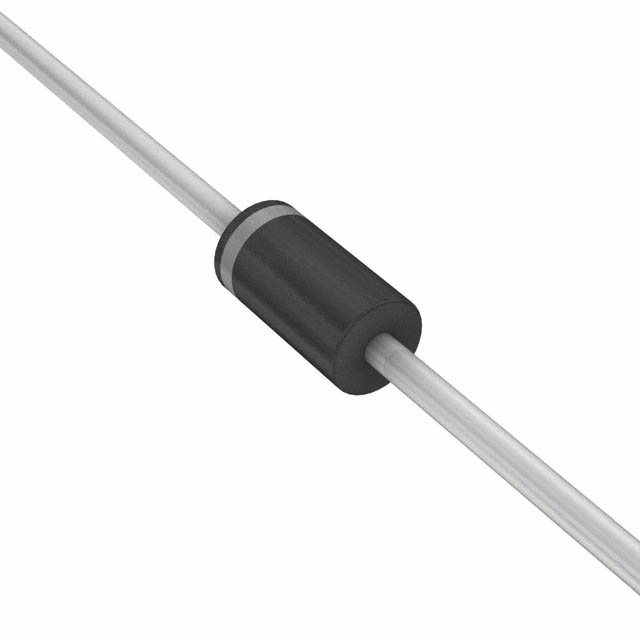

	SB140 SMC Diode Solutions	x 2

Tools, APP Software Used etc.

KiCad 8.0

Description

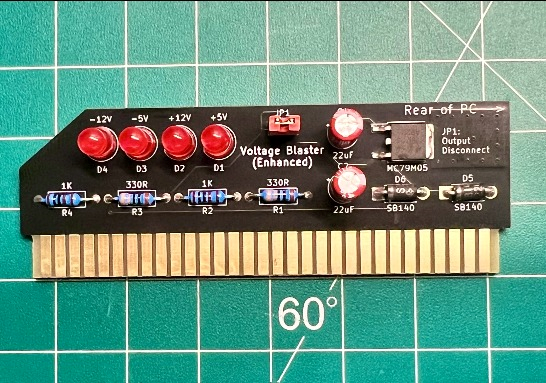

Enhanced Voltage Blaster

Enhanced Voltage Blaster

A (slightly) enhanced version of the original Voltage Blaster by PhilsComputerLab and Necroware.

Enhancements:

Diodes protect regulator from reverse polarity and reverse bias. Prevents soundcard-frying over voltage.
Four LEDs show presence of the four main power rails on the ISA bus.
Dual copper heatsink pads embedded into PCB design to keep regulator cool.
Jumper to disable Voltage Blaster without removal. Can be used to verify lack of (-)5V on ISA bus.

The datasheet for the 79xx series negative regulators strongly recommend two protection diodes. PCs get shutdown suddenly and sound cards have lots of capacitance.

Download Gerbers

Apr 06,2025

353 views

Enhanced Voltage Blaster

A (slightly) enhanced version of the original Voltage Blaster by PhilsComputerLab and Necroware.

353

1

1

Published: Apr 06,2025
