Description

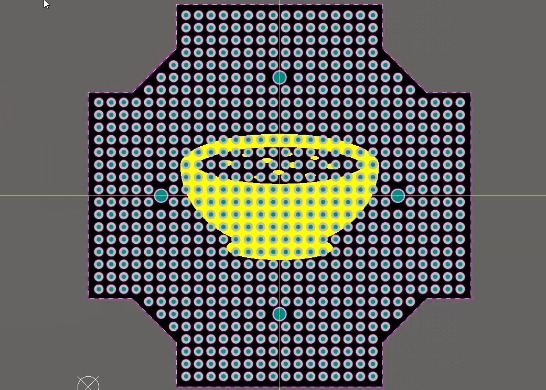

Electrical box prototyping PCB
Since I often use electrical boxes as enclosures for my projects, I decided to make a PCB that will fit perfectly inside to serve as a base for more designs.
This one is designed for boxes around 80x80mm in size.
You can see a video of the design process here:
I'll soon add a video where I use this board in a project. Stay tuned!
Mar 23,2023
1,164 views
Electrical box prototyping PCB
2 Layers PCB 78 x 78 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
A custom design prototype PCB that fits inside common electrical boxes.
1164
1
0
Published: Mar 23,2023
Download Gerber file 3
Purchase
Donation Received ($)
PCBWay Donate 10% cost To Author
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Copy this HTML into your page to embed a link to order this shared project
Copy
Under the
Attribution-ShareAlike (CC BY-SA)
License.
