EavesDrum.io

EavesDrum is an open-source e-drum trigger module project designed for drummers and makers.

It allows you to connect a multitude of drum pads or piezo triggers and convert their signals into MIDI events.

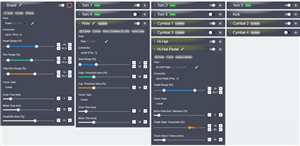

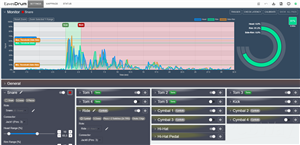

The configuration of the module is simple and user-friendly, thanks to a built-in WebUI. You can adjust sensitivity, threshold, and other parameters directly from your browser—no need for complicated software or direct hardware programming.

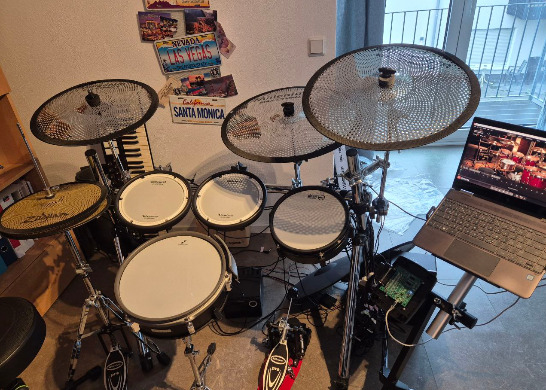

The trigger module acts as a USB MIDI device - simply connect it to your notebook and use drum software of your choice (EZdrummer, Addictive Drums, SSD5, …) to convert your notebook into a complete drum module.

For further information visit the project's homepage:

Code

Github

https://github.com/tobigun/EavesDrum

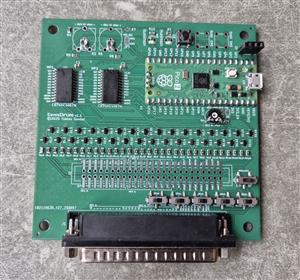

Schematic and Layout

KiCad files

https://github.com/tobigun/EavesDrum/tree/main/doc/schematics/module

Schematics

schematic-module-1.1.1.pdf
