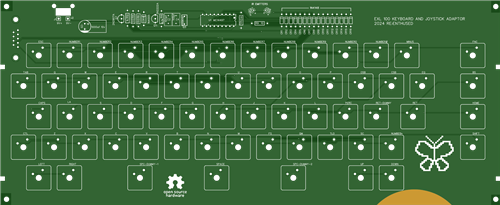

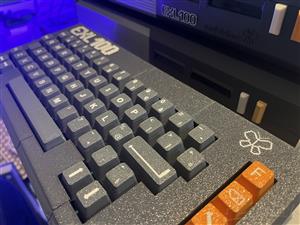

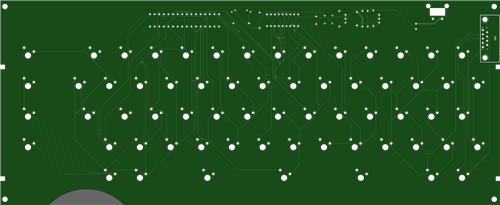

EXL 100 Keyboard Replacement
The Exelvision EXL 100 is a fascinating piece of retro computing history. It does, however, have one major weakness. It's peripherals are wireless. Now, this isn't a weakness on it's own, but it does means that things like the controllers and the keyboard can be missing.
I covered the controllers in my other shared project but now we have a replacement keyboard.

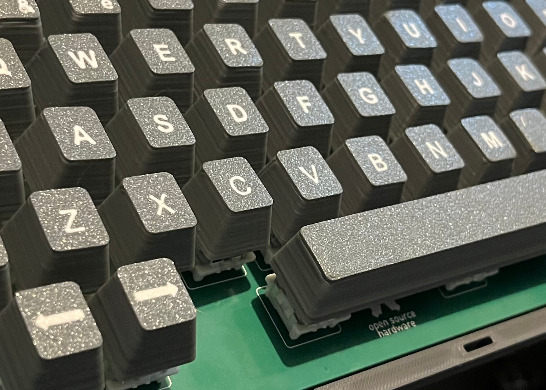

It uses 2 pin Cherry MX key switches and i've included the 3D printable case and key caps.
EXL 100 Keyboard Replacement
