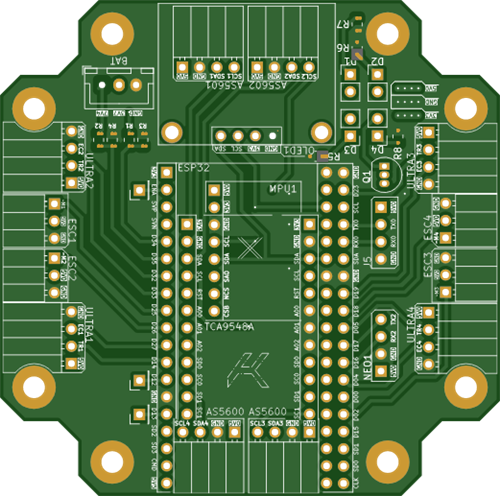

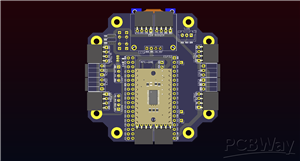

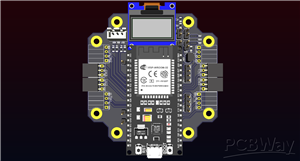

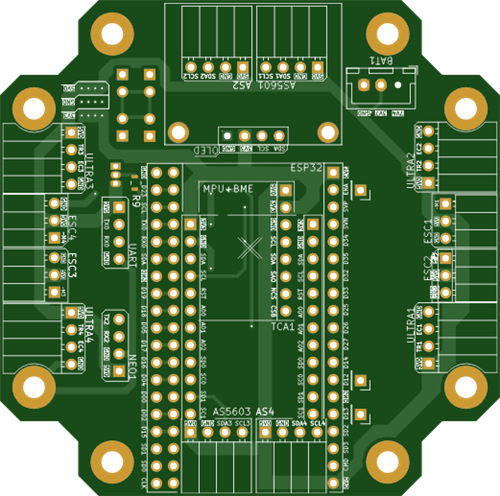

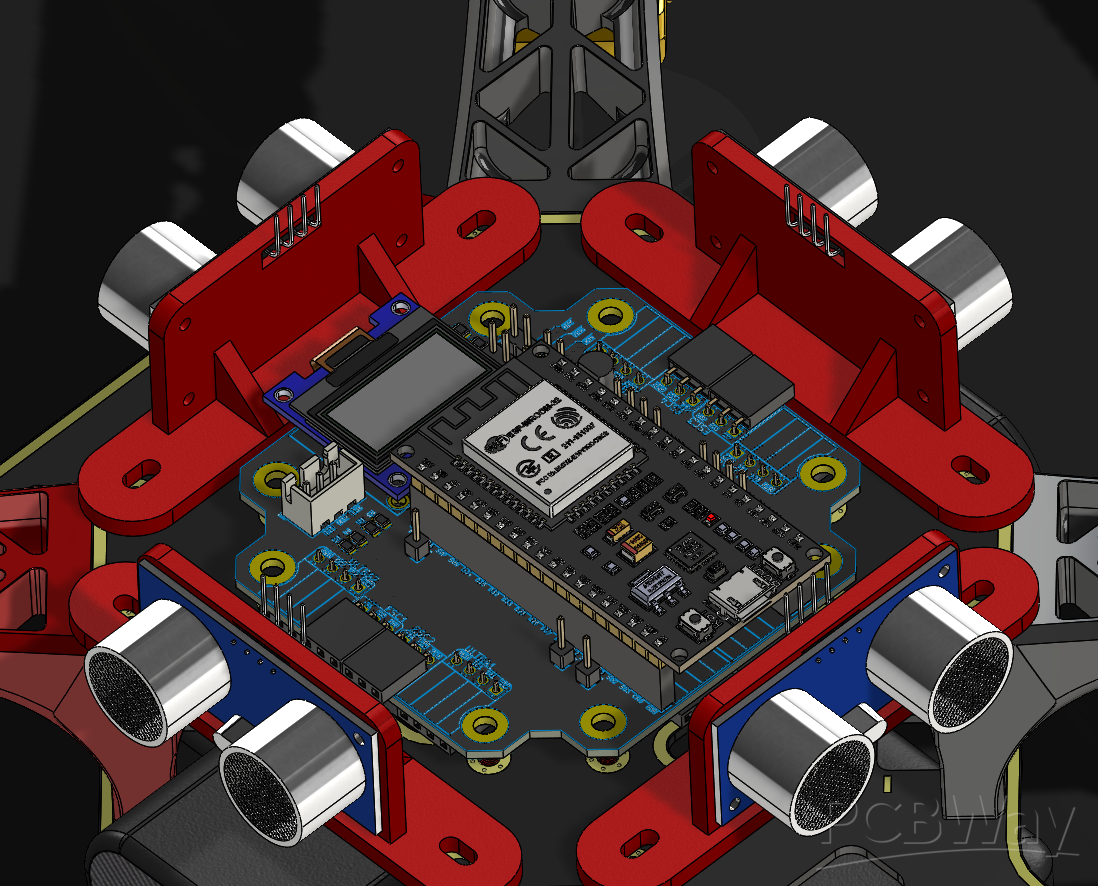

ESP32 Shield for F450 drone (cp2102)
BOM to consider:
1 x ESP32 DevKit Board 38 pin (cp2102)
4 x HC-SR04 Ultrasonic sensor
4 x ESC Motor Controller
1 x NEO 6M GPS
1 x MPU9250+BME280
1 x TCA9548A Multiplexer
4 x AS5600 Encoder
1 x SSD1306 128x64 OLED Display
