Tools, APP Software Used etc.
|
KiCad 9.0 |
|
|
arduino IDEArduino
|
Description

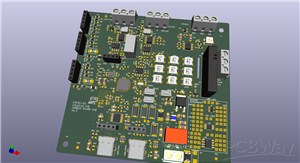

ESP32-S3 industrial evaluation board with RGB LED matrix
This board is based on ESP32-S3 chip and microcontoller
There are the following physical communication interfaces
a) debug USB (it is connected to a UARTport of ESP32-S3)
b) native USB
c) isolated CANBUS with termination resistor
d) isolated RS485 with termination resistor
There is a 9 RGB LED matrix (WS2812B)
There are 9 ESD protected GPIOs
There is a free section of testpoints for experiment
Code
ESP32-S3 industrial development board
https://github.com/gmarocco/ESP32indEVB
Schematic and Layout
ESP32-S3 industrial development board
https://github.com/gmarocco/ESP32indEVB
Dec 28,2025
105 views
ESP32-S3 industrial evaluation board with RGB LED matrix
The board is based on ESP32-S3 chip and microcontoller There is a WS2812B LED matrix and isolated RS485 and CANBUS interfaces
105
0
0
Published: Dec 28,2025
Standard PCB
Download Gerber file 1
BOM(Bill of materials)
Centroid file
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
