Project Overview

The project is  ESP32 + RC522 RFID Access Control PCB   which is meant for contactless authentication via RFID module and using tags, The PCB serves an ESP32 along with RC522 RFID module. It's compact, reliable and able to scale for future updates.

The devices read the UIDs from the RFID cards or tags and then sends data to the ESP32 for further processing, the ESP32 compare with the inbuilt storage and trigger locking/ unlocking action accordingly. The RC522 modules are very commonly used for identification purposes.

Features

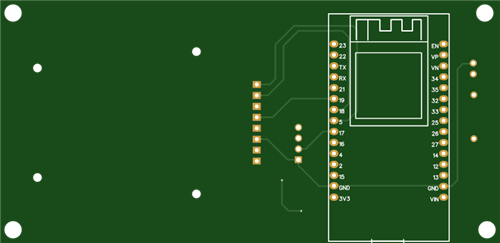

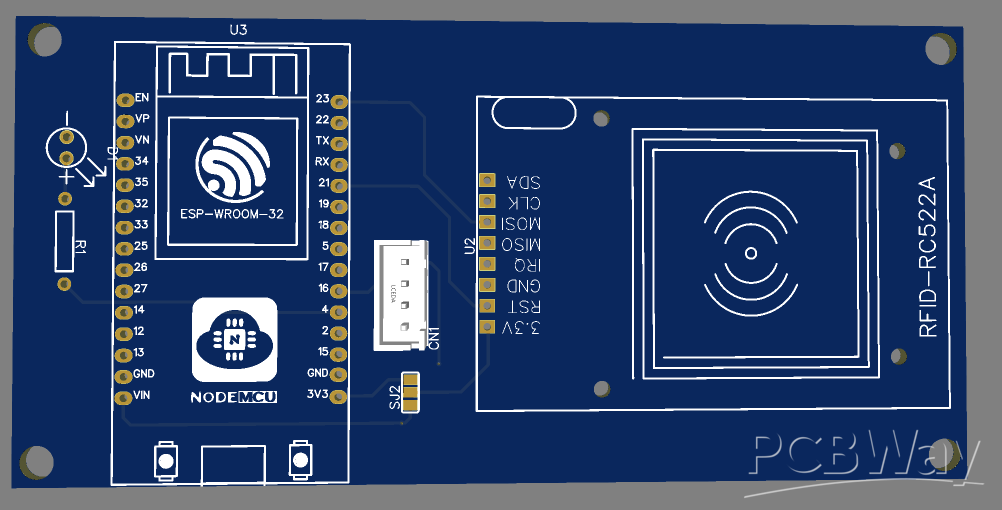

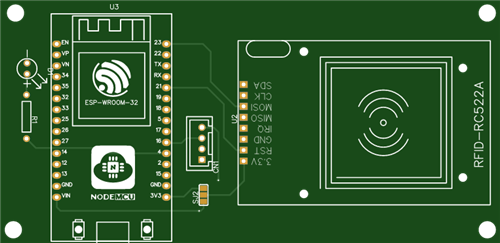

• Custom PCB design for ESP32 and RC522
• RFID card and tag detection
• Fast UID-based authentication
• Compact embedded hardware design
• Low-power operation
• Real-time serial monitoring
• Expandable for IoT and cloud integration
• Suitable for smart access control systems

How It Works

1. Power on the PCB.
2. ESP32 initializes the RC522 RFID reader.
3. The RC522 continuously scans for nearby RFID cards.
4. When a card is presented, its unique UID is read.
5. The ESP32 compares the UID with authorized records.
6. If authentication is successful, the configured action is executed.
7. Status information can be displayed through the serial monitor or co
8. RFID communication is performed through the RC522 reader using standard contactless identification technology operating at 13.56 MHz.

Build Instructions

Step 1: PCB Assembly

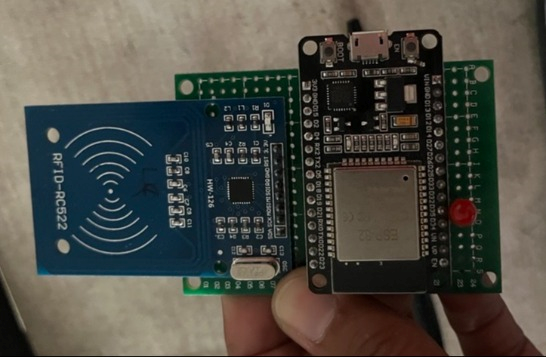

• Solder the ESP32 module onto the PCB.
• Mount the RC522 RFID reader.
• Verify all power and signal connections.

Step 2: Firmware Upload

• Open the Arduino IDE.
• Install the required RFID library.
• Connect the ESP32 via USB.
• Upload the firmware.

Step 3: RFID Configuration

• Register authorized RFID card UIDs.
• Save the allowed IDs in the firmware.

Step 4: Testing

• Open Serial Monitor.
• Present RFID cards to the reader.
• Verify successful UID detection and authentication.

Step 5: Deployment

• Install the PCB inside an enclosure.
• Connect relays, locks, or automation devices if required.

Applications

• Smart Door Access Systems
• Office Attendance Management
• Employee Identification
• Smart Vending Machines
• Laboratory Access Control
• Asset Tracking Systems
• Industrial Authentication Solutions

Benefits

• Improves security through contactless authentication
• Reduces manual verification processes
• Compact PCB design minimizes wiring complexity
• Easy integration with IoT platforms
• Cost-effective access control solution
• Scalable for commercial and industrial environments

Conclusion

The ESP32 RC522 RFID Access Control PCB demonstrates how RFID technology and embedded systems can be combined to create a secure, reliable, and efficient authentication platform. With its compact PCB design, wireless capabilities, and flexible architecture, the project serves as an excellent foundation for modern access control, attendance tracking, and automation applications. Businesses and innovators looking to build advanced IoT solutions can also hire ESP32 developer expertise to customize and scale similar RFID-based systems for commercial deployments. The project can be further enhanced with cloud connectivity, mobile notifications, and database integration for next-generation smart automation.
