Dual OPA "Alice" Microphone Circuit

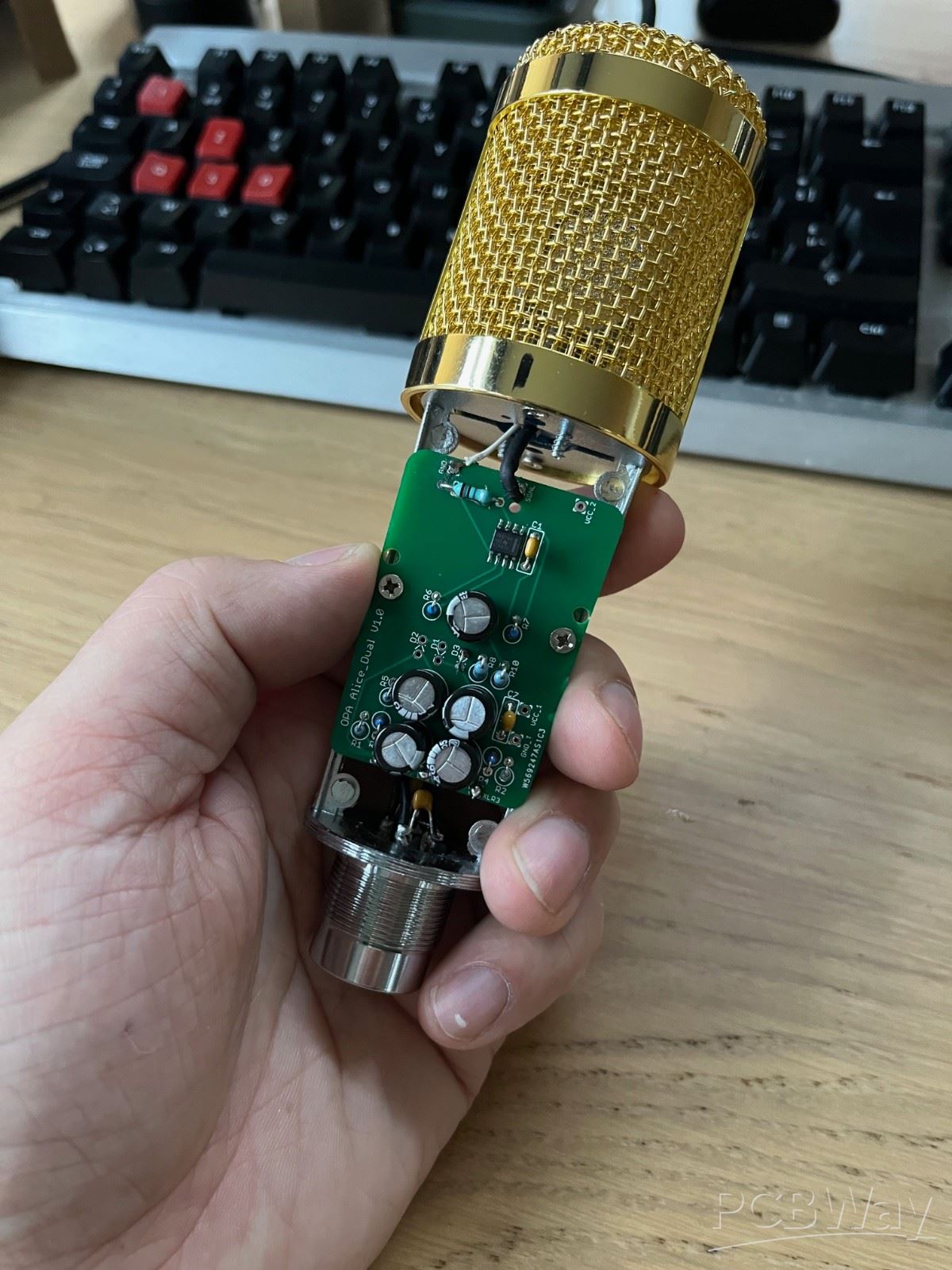

This is the PCB for a dual operational amplifier circuit that will mount in a BM-800 body and interface with a condenser microphone capsule such as the TSB2555B and TSB165. These are Electret with no internal FET. Also it will work with true condenser capsules that require bias voltage. This has a 12 volt output that can be used to supply the bias circuitry. The build instructable is here And a video of it in action on four microphones is here https://youtu.be/7JmeEmgNlPw

Download BOM(Bill of materials)

Sep 23,2020

38,841 views

Dual OPA "Alice" Microphone Circuit

OPA Alice, Opamp Microphone electronics replacing the normal FET and PNP transistors

38841

71

42

9.08 (6)

Published: Sep 23,2020

Standard PCB

BOM(Bill of materials)

Centroid file

PCBWay Donate 10% cost To Author

File Last Updated: 2023/07/13 (GMT+8)
