1N5408 |
x 4 | |
|
|
7812 |
x 1 | |
|
|
7912 |
x 1 | |
|
|
2200uF 35V 16X25 |
x 2 | |
|
|
CAP-X7R-0402-100NF-50V |
x 2 |
Dual 12 Volt Supply Circuit

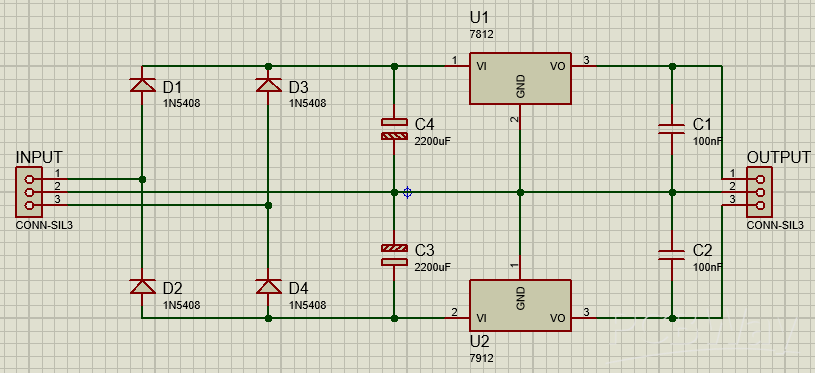

This project is a Dual 12-volt supply circuit that takes a 12V AC input from a centre-tapped transformer and provides a DC +12 to -12 output.
