Components

	MKDS 1,5/ 2-5,08 Phoenix Contact	x 3
	L7805ACV STMicroelectronics	x 1

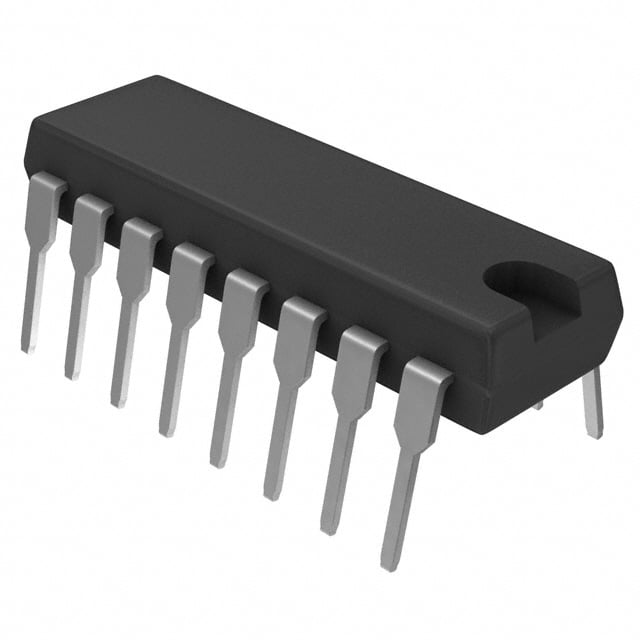

	L293D STMicroelectronics	x 1
	Condensateur radial 2200µF/16V	x 2
	1N4148WS JSMICRO	x 9

Tools, APP Software Used etc.

KiCad 9.0

Description

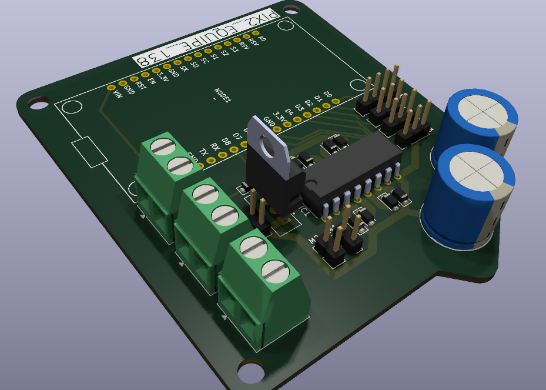

Driver for motor and sensor using esp8266

Made for a student project. The goal was to make a robot able to push another robot outside an arena. We decided to make our own pcb. So that we could have as much power as possible for the motor.

Download Gerbers

May 16,2026

32 views

Driver for motor and sensor using esp8266

Simple driver for motor and sensor using esp8266. This project was made for a student project. The goal of the project was to make a robot.
