Description

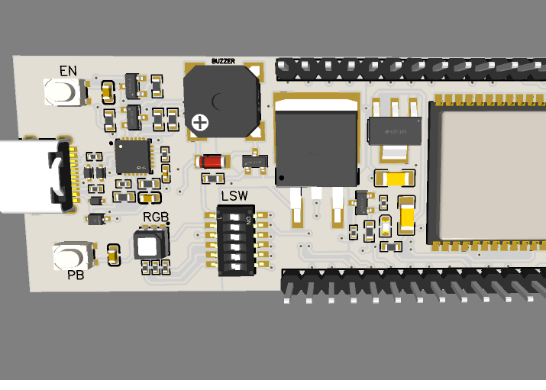

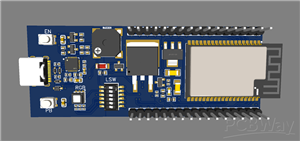

Development kit using Esp32-Wrover
This is a development kit with the main mcu is ESP32_WROVER E
Functions of the kit:
- IRLZ44N power mosfet
- RGB Led
- Buzzer
- Programmable push button
- This kit has a logic switch that can be used to turn off all the above functions to ensure all GPIO pins will be used

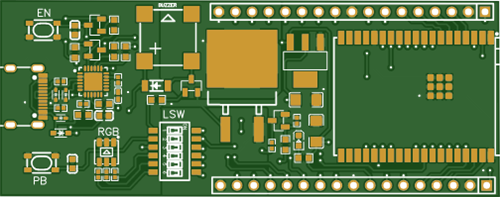

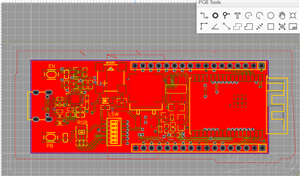

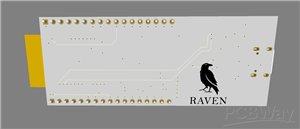

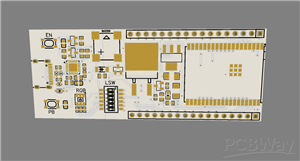

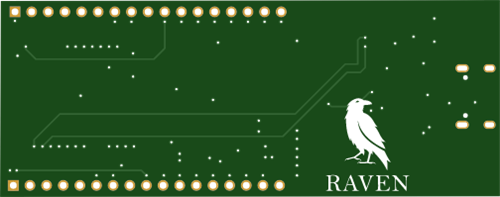

Schematic and Layout

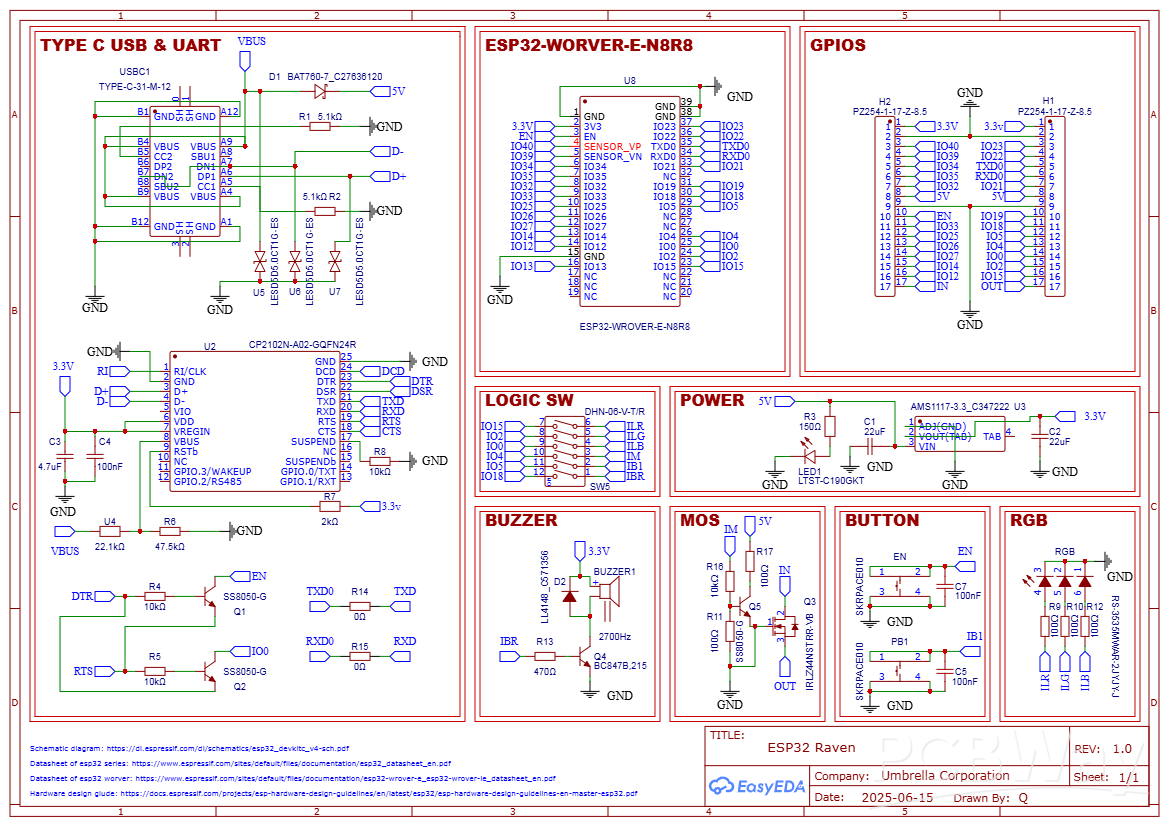

Schematic diagram
Datasheet
esp32-wrover-e_esp32-wrover-ie_datasheet_en.pdf
Sep 22,2025
244 views
Development kit using Esp32-Wrover
This is a development kit using Esp32-Wrover
244
0
0
Published: Sep 22,2025
Standard PCB
Download Gerber file 2
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
CERN-OHL-P-2.0
License.
