Description

Desktop Indoor Air Quality Sensor

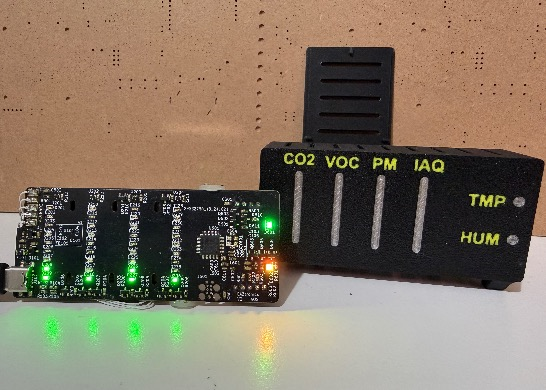

In summary, the Desktop IAQ is a USB-C powered indoor air quality monitor built on an STM32G030 that reads from three sensors (Senseair S8 for CO2, AGS02MA for VOCs, and Renesas RRH62000 for particulate matter + humidity/temp), then displays results on a 36-LED multiplexed array (9 rows × 4 columns — one column per parameter) plus RGB status LEDs.

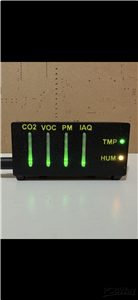

The LED arrays have 4 LED colours, 3xgreen, 3xorange, 2xred and a single blue LED. The idea behind this LED arrangement was to allow for a simple to understand gauge. If the reading is green you are all good, if its red or blue then it might be worth opening (or maybe closing) a window.

Code

I used the ST Cube IDE, I have uploaded the whole folder

IAQ_Take2.zip

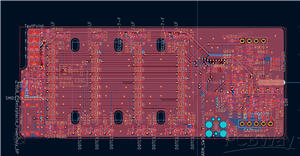

Schematic and Layout

Full KiCad Project with Schematic pdf

IAQ_KiCad_Project_V2.zip

CAD-Custom parts and enclosures

All mechanical files needed, can export step or stl etc from FreeCad

FreeCad_Mechanical.zip

Download Gerbers Download BOM(Bill of materials)
