2

Components

	nRF24	x 1
	Cyd whit esp32	x 1
	Jumper wires female to male	x 1

Description

Cyd jamming project

A cyd running bruce beta firmware and a nrf24 for jamming 2.4Ghz connections there are 5 things to do 1. Wifi | beacon spam, scan wifi, connect wifi

2. Bluetooth |ble scan, iBeacon, BLE Keyboard

3. Rf | scan/copy, record RAW, Spectrum

4. RFID whit module | Read tag, Read 125kHz, Scan tags

5. Ir | TV-B-Gone, Custom IR (import file), IR Jammer

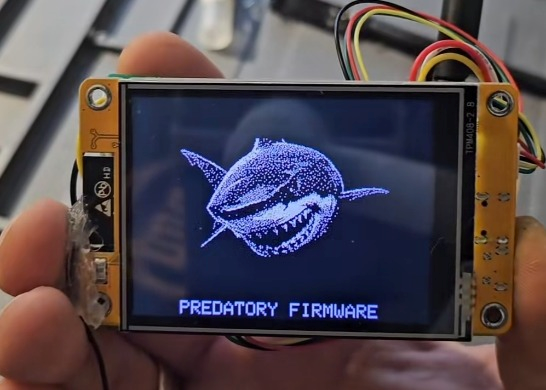

! This project is used for experimenting not for illegal purposes! The photo is not mine its just how it would look

May 21,2025

874 views

Cyd jamming project

Cyd whit nrf24

874

Published: May 21,2025
