CustomBoot-32

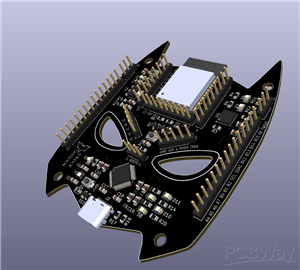

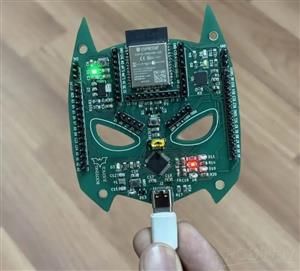

The project focuses on creating a custom PCB that integrates the Blue Pill (STM32F103C8T6) with ESP32 WROOM-32E.
The ESP32 hosts a website, receives two firmwares via OTA, creates memory partitions, and initializes a File System in one of the partitions.
On the STM side, a dual-image Bootloader requests firmware based on user input, verifies it, allocates it in flash memory, and executes it.
The firmware transfer is carried out via UART.
Code
https://github.com/avm1234567/Customboot-32

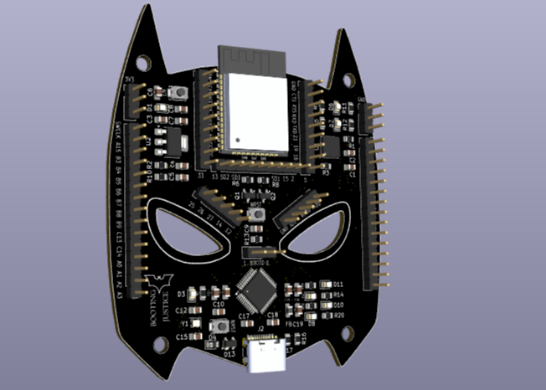

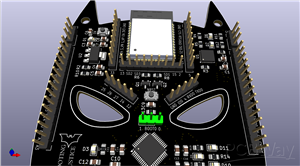

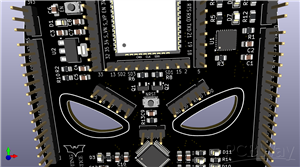

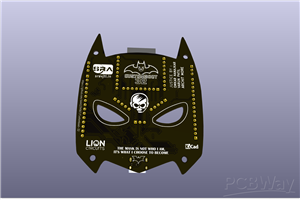

Schematic and Layout
https://github.com/avm1234567/Customboot-32
CAD-Custom parts and enclosures
https://github.com/avm1234567/Customboot-32
