Description
Z axis gantry

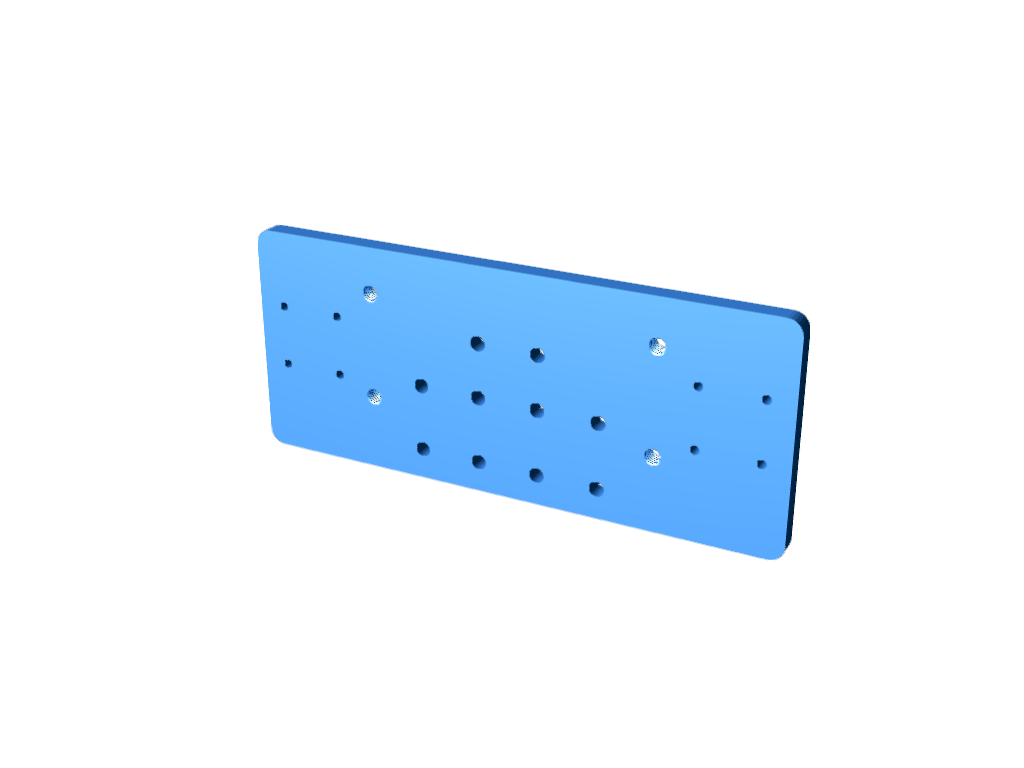

This is the z gantry for the Longmill.
This allows the use of 1.5kw and 2.2 kw spindles with built in mounting flanges. Requires additional 20 mm spaces to prevent the spindle from colliding with the top of the gantry.
CAD-Custom parts and enclosures
C-3C20W195119A_Z axis gantry
C-3C20W195119A_Z axis gantry.step
zgantry.pdf
Apr 06,2025
172 views
Z axis gantry
This is the cantry plate for the original longmill cnc to use a 1.5 kw spindle. 4 additional 20mm spacers to prevent collision with the top.
172
0
0
Published: Apr 06,2025
