CRAFTEX CX-500 - Replacement Micrometer Screw Bracket

This replacement micrometer screw bracket is designed specifically for the CRAFTEX CX-500 Spindle Sander. When precision-machined from durable mild steel from PCBway, it offers excellent strength and reliability for long-term use in demanding shop environments. The bracket ensures secure and accurate positioning of the micrometer screw, restoring full functionality to your sanding belt tensioner. Built stronger than original specifications, it is an ideal solution for replacing the worn or damaged bracket on the CX-500 for many more years of service.

CAD-Custom parts and enclosures

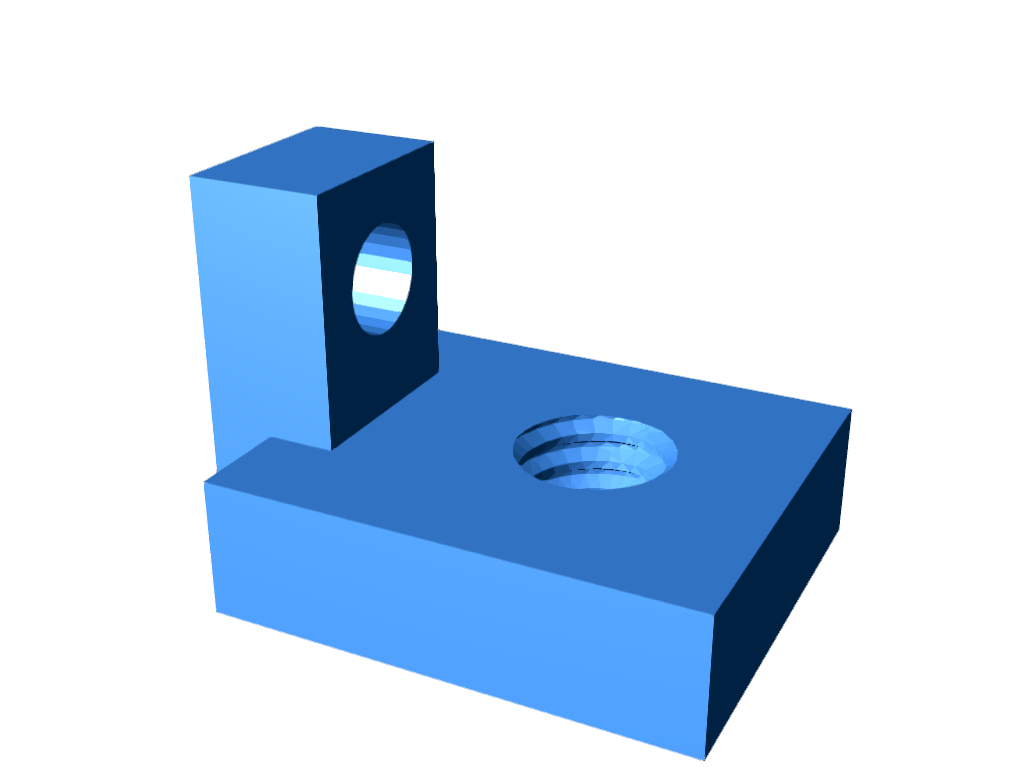

C-4C1W928535A_CX-500 Spindle Sander Micro screw Bracket v1

C-4C1W928535A_CX-500 Spindle Sander Micro screw Bracket v1.step

CX-500 Spindle Sander Micro screw Bracket.PDF

Apr 10,2025

459 views

CX-500 Spindle Sander Micro screw Bracket v1

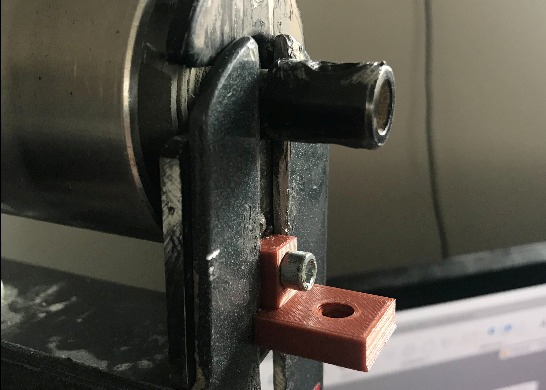

This part replaces the Micrometer bracket that can not be bought on a CRAFTEX CX-500 Spindle Sander. The bracket holds the Micrometer screw.

459

Published: Apr 10,2025
