COMMODORE MOS 2364 ROM READER & TESTER ADAPTER

(2364 to 2764 Converter)

Hello,

This is a tested and working project.

This is an Easy DIY project, all components are through hole, marked on the PCB, Easy to solder, Easy to make ;)

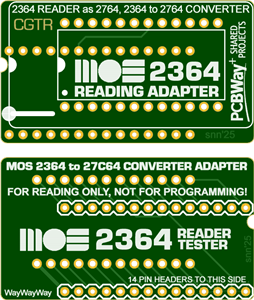

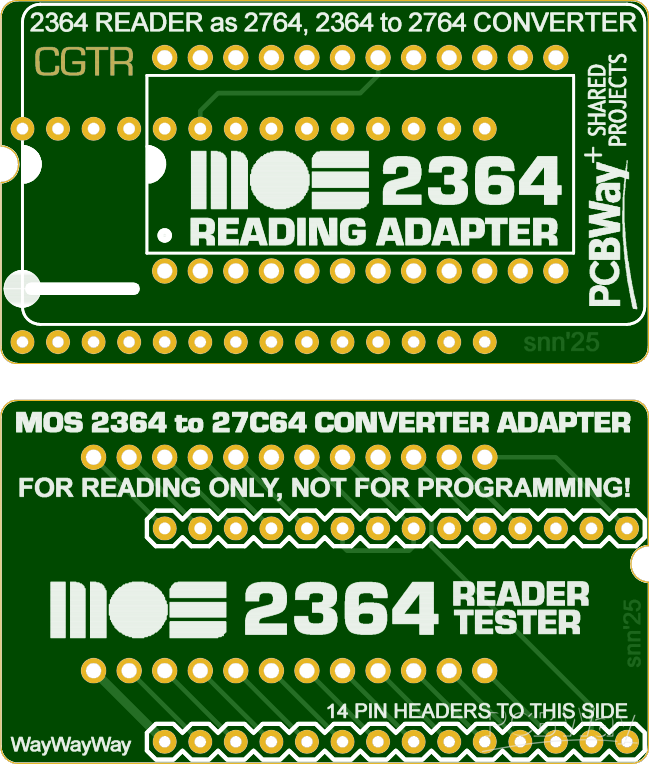

Commodore MOS 2364 ROM reader & tester adapter is designed for reading and testing (verifying) Commodore MOS 2364 ROMs with your IC programmer.

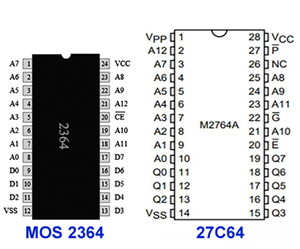

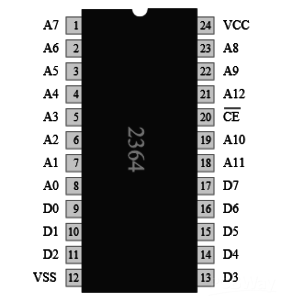

This adapter converts the MOS 2364 ROM pinout to a 27C64 EPROM pinout. It is intended only for reading and verification, it does not support erasing, programming, or rewriting.

The testing method is, verifying the MOS 2364 ROM against the original binary ROM image file.

How to use:

Insert the MOS 2364 ROM chip into this adapter.

In your programmer software, select “27C64 EPROM” as the IC type.

Disable or uncheck the “Check-ID” option in your programmer software.

Insert the adapter (with the 2364 chip installed) into your programmer’s IC socket.

Read or verify your MOS 2364 ROM image as if it were a 27C64 EPROM.

Components List:

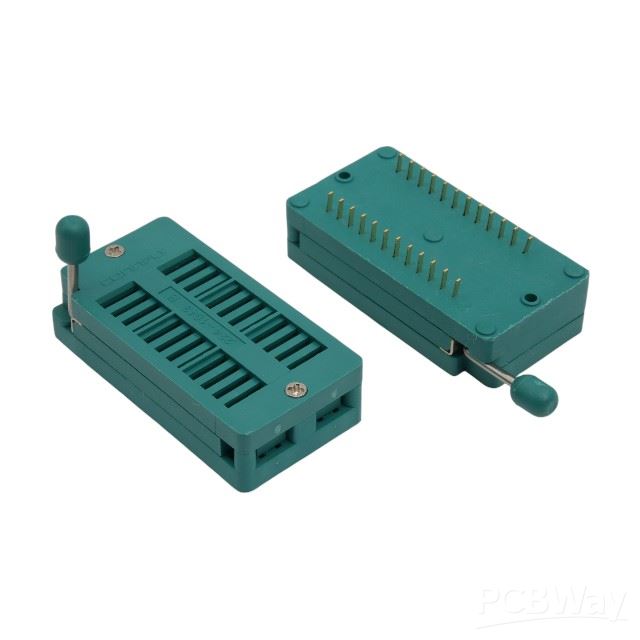

24 Pin ZIF IC Socket 7,62-15,24mm (DS1043-240G or 224-1275-00-0602J)

2 pcs. 14 Pin 2.54mm Male Pin Header

If you need a replacement for MOS 2360 ROM you can found it here;

https://www.pcbway.com/project/shareproject/C64___BASIC___KERNAL_ROM_REPLACEMENT_ADAPTER_REV_3.html

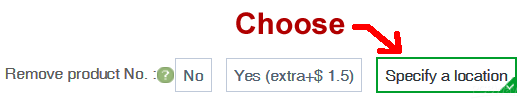

Gerber files and component list are subject to change without notice. Before paying for the PCBs, be sure to update your orders!

As you can see I have uploaded many projects and I am still working on new projects. If you have any questions, please look for answers online. Unless I specify explicitly, all my projects are tested and confirmed to work under normal circumstances before being shared. I'm sorry I didn't have enough time to answer all the questions.

Use this PCB at your own risk !

Have fun

Thank you.

C64iSTANBUL
