CNC Workholding Clamp for Wood

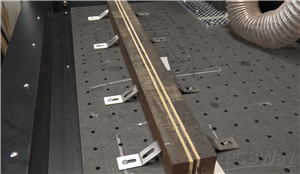

These simple clamps can be used with M6 or M8 bolts to clamp workpieces to your CNC bed. They can be used in the orientation like the model to clamp on a ledge, or flipped upside down to clamp on the side of a wooden board.
When ordering, specify that the bend radius does not matter to get a lower price. Stainless steel is recommended, but mild steel would work too (might rust).
For storage, there is a Gridfinity box included to be 3d printed. It holds up to 8 clamps.
CAD-Custom parts and enclosures

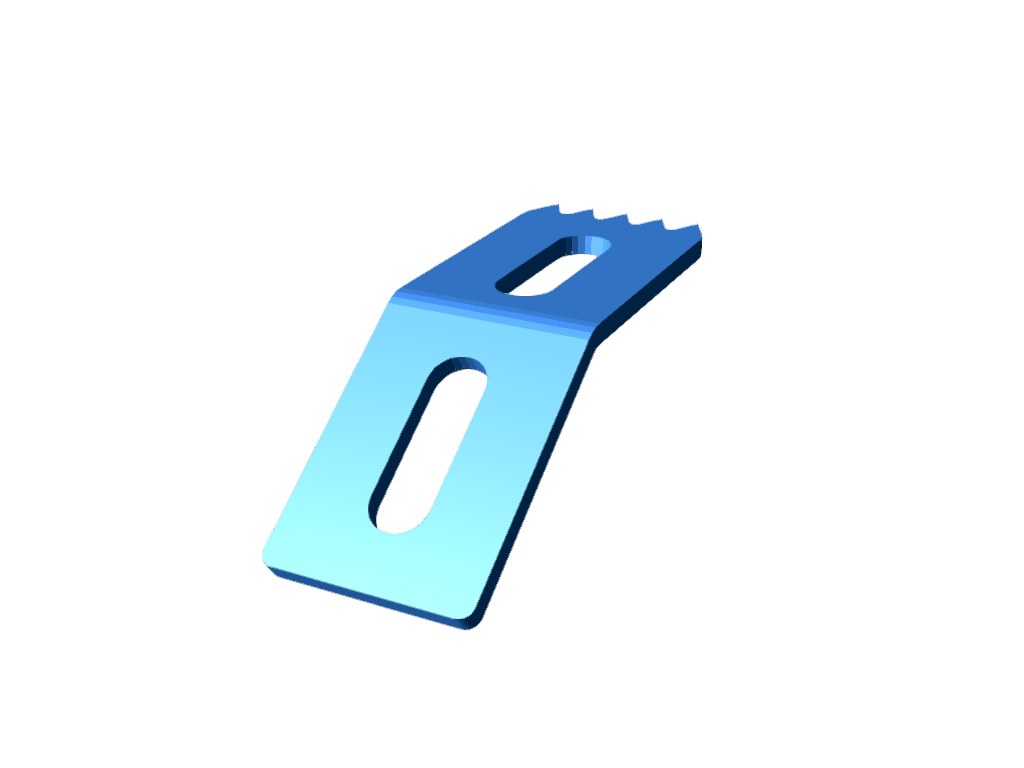

Sheet Metal CNC Workholding Clamp
Holddown Clamp.step

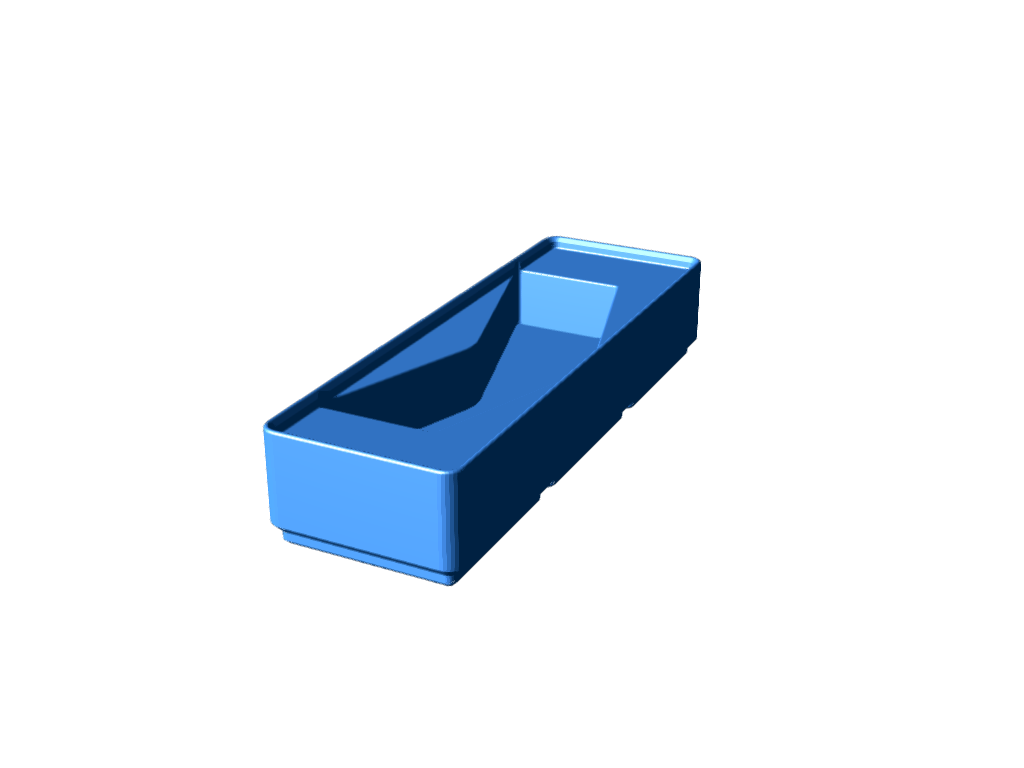

Gridfinity compatible box for 8pcs
CNC Clamp Gridfinity 1x3 Storage Box for 8pcs.stl
Apr 10,2026
13 views
CNC Workholding Clamp for Wood

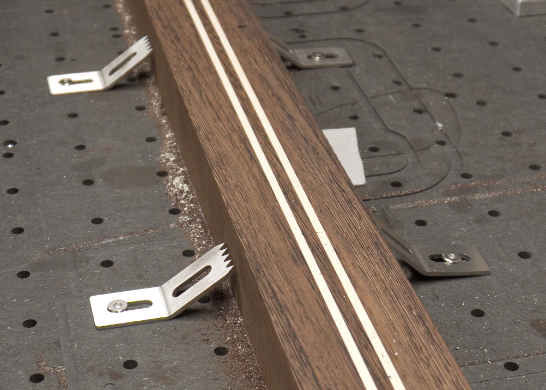

Simple sheetmetal clamps to hold wood blocks and boards to the CNC bed for surfacing and other operations.
