Description

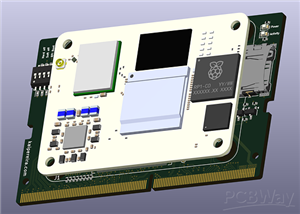

CM5/CM4 SO-DIMM Carrier with Jetson Compatibility

This SO-DIMM card essentially let's you turn a CM5 into a NVIDIA Jetson card, turing RK1, and other compatible SO-DIMM standards! It's going to be used for my future server cluster motherboard! It's fully open source here!

Custom Features!

Jetson/Turing RK1/Radxa/etc compatible SO-DIMM connector
Support for SD Card mounting
GbE Ethernet
1x PCIe Gen 3.0
2x USB 3.2 Gen 1 support, 1x USB 2.0
1x HDMI 2.0
2x 4-Lane MIPI CSI
Misc buttons/LED's

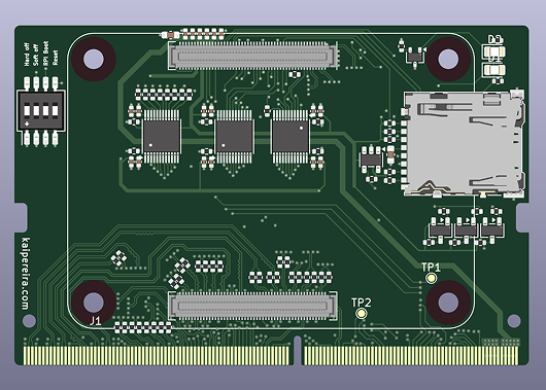

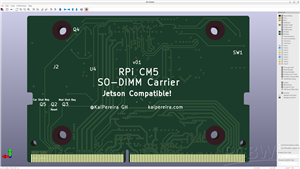

PCB Design

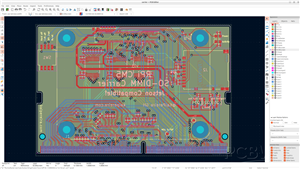

The CM5 SO-DIMM carrier is a complex 6-layer PCB, with the stackup HIGH-SPEED/GND/SIGNAL/SIGNAL/GND/HIGH-SPEED, with power running along the top layer!

You can easily access the schematic, PCB layers and whole PCB PDF's!

Schematic and Layout

GitHub Repository!

https://github.com/KaiPereira/CM5-SODIMM-Carrier

Download Gerbers Download BOM(Bill of materials)

Nov 24,2025

924 views

CM5/CM4 SO-DIMM Carrier with Jetson Compatibility

A fully open source CM5/CM4 carrier to turn your Pi into a Jetson in compact SO-DIMM format!
