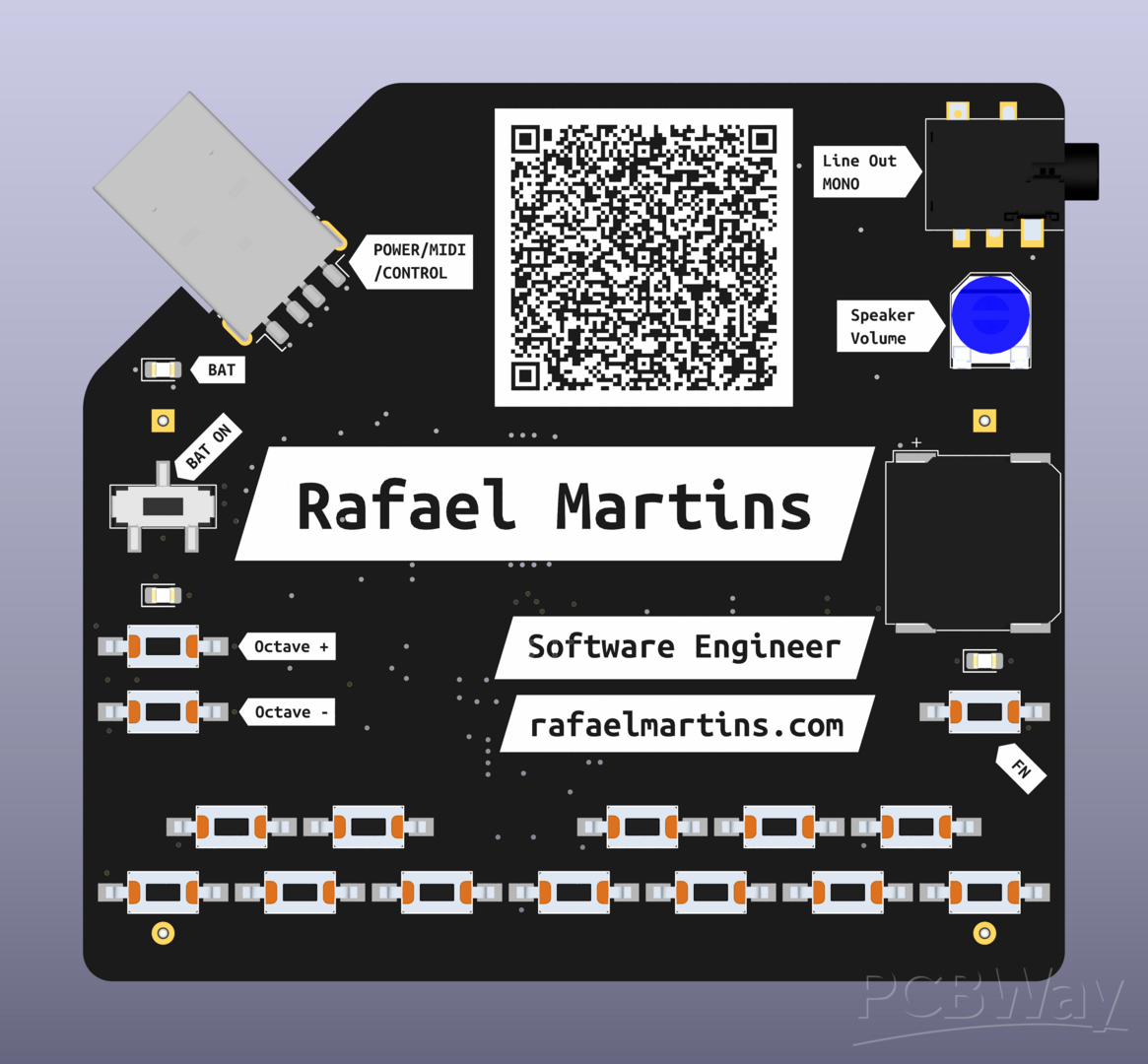

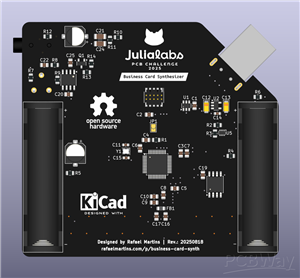

Business Card Synthesizer
This is a business card PCB, that embeds a polyphonic audio synthesizer. It was built as part of JuliaLabs PCB Challenge 2025.
This project is originally licensed as CERN-OHL-S-2.0, but as this license is not available for this platform, I hereby dual-license this specific release as CC BY-SA.
This project is only about the PCB, the software is not included (it is also open source but shared under a different license).
Schematic and Layout
https://github.com/rafaelmartins/julialabs-pcb-challenge2025
