Description
BurgerDisk DB19 to IDC20 adapter
BurgerDisk provides the Smartport-capable Apple II with a daisy-chainable SD-card-based hard-drive. This small PCB is the DB19 to IDC20 adapter that allows you to connect the BurgerDisk to the Apple II.
Dec 30,2025
210 views
BurgerDisk DB19 to IDC20 adapter

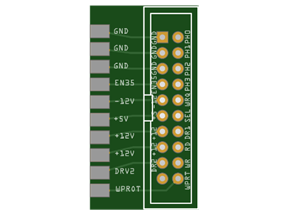

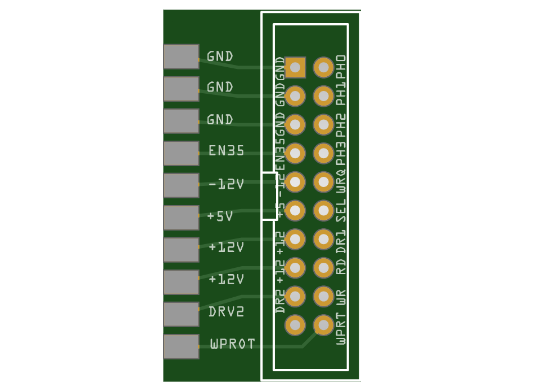

2 Layers PCB 33.2 x 17.9 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
The adapter for connecting BurgerDisk to the Apple II. https://github.com/colinleroy/BurgerDisk
