Bluetooth NES Advantage

Overview

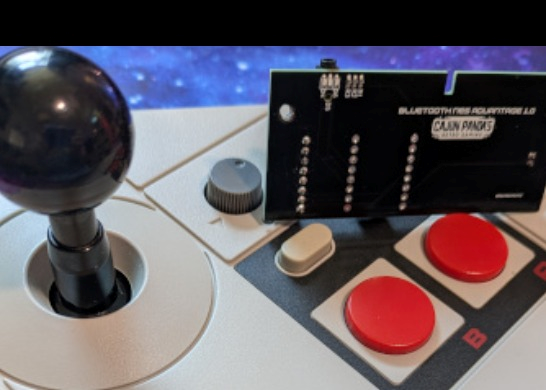

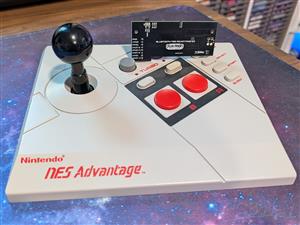

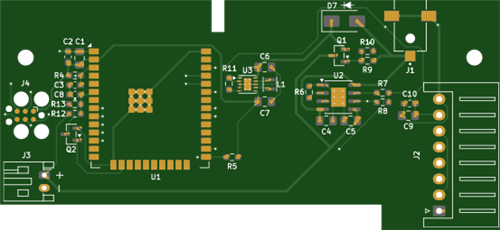

The BT-NES-Advantage is a custom Bluetooth adapter built into the NES Advantage controller, allowing it to connect wirelessly to modern devices as a standard Bluetooth gamepad. This project uses an ESP32-C3 microcontroller to read the NES controller's inputs and transmit them via Bluetooth HID protocol.

Features

- Wireless Bluetooth connectivity

- Standard gamepad HID implementation

- Long battery life with low power sleep mode

- RGB status LED indication

- Battery level monitoring and reporting

- 5V DC barrel jack charging port

More information can be found on the GitHub page.

Download Gerbers Download BOM(Bill of materials)

Jun 16,2025

223 views
