AudioDIWHY
UNITED STATES OF AMERICA • + Follow
Components
|
|
BNC right angle (SuperBat)Supebat
|
x 3 | |
|
|
35RAPC2AVSwitchCraft
|
x 3 |
Tools, APP Software Used etc.
|
KiCad 9.0 |
Description

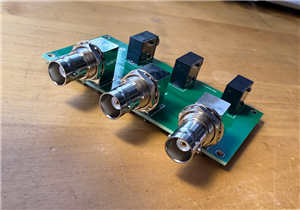

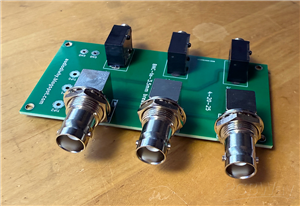

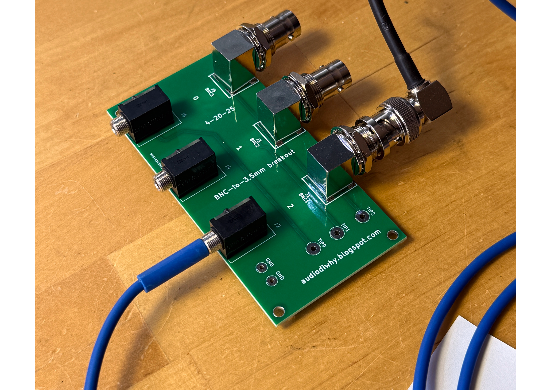

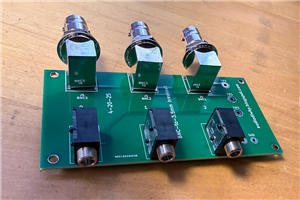

BNC to 3.5mm x3 adapter board
I needed some BNC to 3.5mm conversion and didn't want to use unreliable and fragile adapters or custom cables. I designed this PCB. In addition to the format conversion it has each tip and 2x ground terminated with test pads.
For more details on this board please see this blog post.
https://audiodiwhy.blogspot.com/2025/06/bnc-to-35mm-adapter-board-no-ai-involved.html

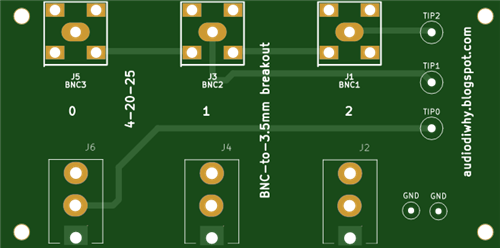

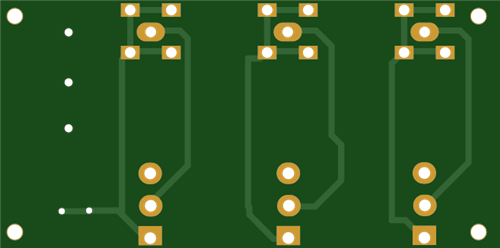

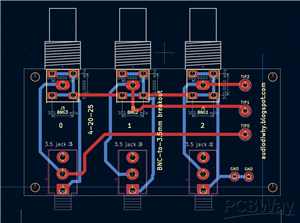

Schematic and Layout
Kicad files
W55102CSH236_BNC-to-3.5mm 4-20-25.kicad_pcb GERBER.zip
Kicad custom footprint library
charhead-lib.pretty-6-9-25.zip
Kicad custom symbol library
charhead.kicad_sym
Jun 08,2025
287 views
BNC to 3.5mm x3 adapter board
Simple BNC to 3.5mm mono conversion PCB, supports 3x BNC > 3.5mm
287
0
0
Published: Jun 08,2025
Standard PCB
Download Gerber file 4
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-MIT
License.
