Description

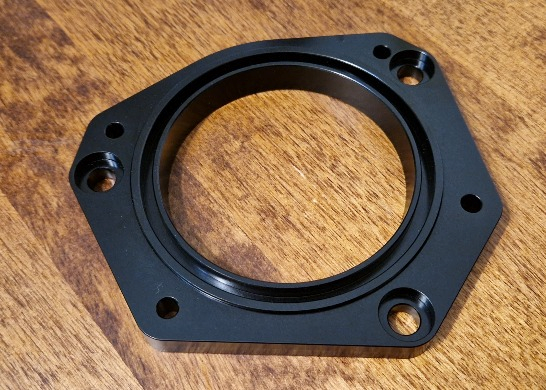

BMW S58 intake to M52 throttle body adapter.

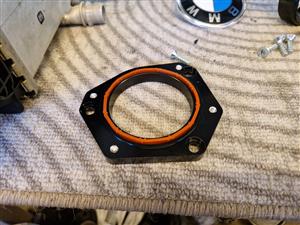

Quite niche adapter to bolt the mechanical M52 throttle body to BMW S58 intake. The throttle body screw holes need to be tapped into m6 thread and then 3 countersinks need to be done. Gasket used is S58 throttle body gasket (13548632344)
CAD-Custom parts and enclosures

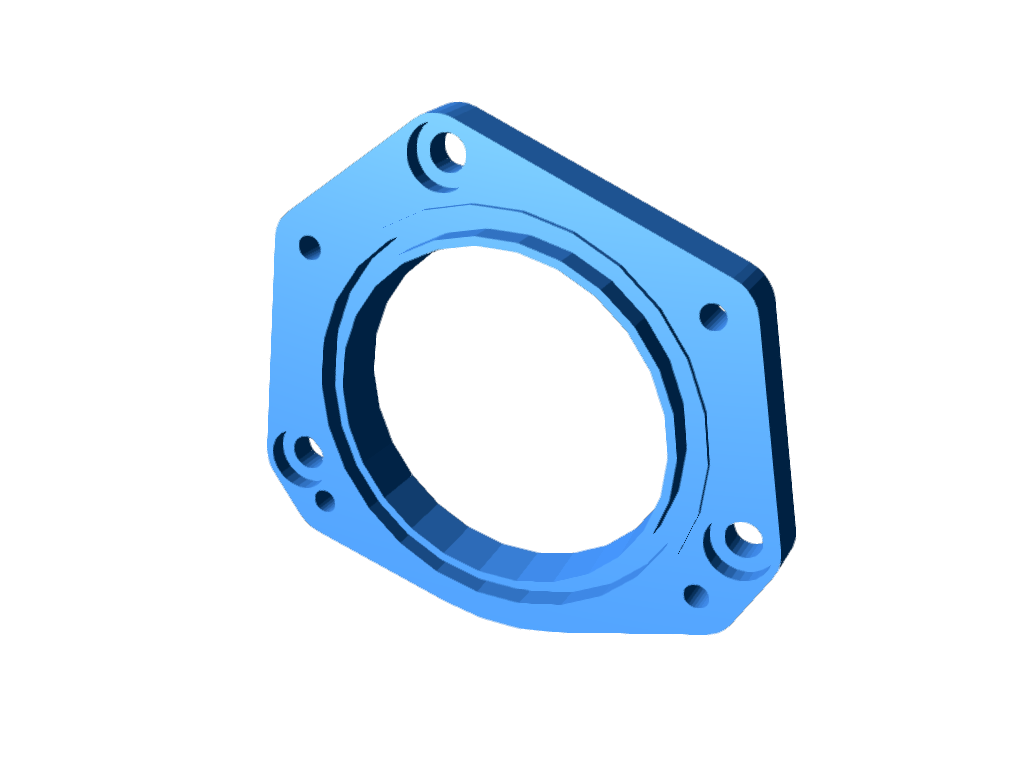

C-4C5W1771091C_S58 TB Flange v3
C-4C5W1771091C_S58 TB Flange v3.step
Apr 16,2025
403 views
BMW S58 intake to M52 throttle body adapter.

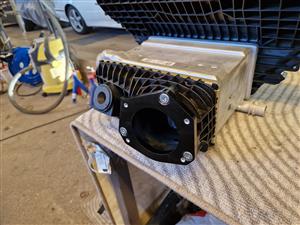

To bolt on M52 TB to S58 intake
403
0
0
Published: Apr 16,2025
