PIC16F570-I/SOMicrochip
|
x 1 | |
|
SN74HCT245NSRTI
|
x 1 | |
|
Capacitor 100nF |
x 2 | |
|
Capacitor 47uF |
x 1 | |
|
Resistor 470R |
x 8 | |
|
Resistor 10K |
x 5 | |
|
AO3401AAOS
|
x 3 | |
|
SP410401NARKLED
|
x 1 | |
|
Pin Header Angled 8 Pins |
x 1 | |
|
Pin Header 3 Pins |
x 1 | |
|
Pin Header 2 Pins |
x 1 | |
|
Jumper |
x 1 |
|
KiCADKicad
|
8-bit Busdisplay

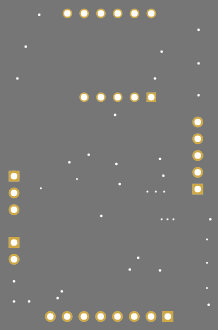

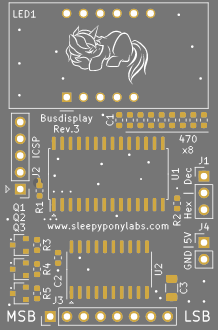

Busdisplay is a small PCB that allows you to monitor the current data on an 8-bit bus. The data is shown on a 7-segment display. Both decimal mode (0-255) and hexadecimal mode (0x00-0xFF) are supported and could be set by a jumper.
This kit is useful for debugging your project, for example, showing current data on your retro computer bus. However, this is not a replacement for a logic analyzer and does not have that high bandwidth. You should verify that this board is suitable for your needs first!
This is a revision 3 of the project. It contains numerous improvements from previous versions, such as a functional ICSP header, a PIC microcontroller with built-in oscillator, and overall better solderability. The size is also optimized for 2x3 v-score panelization because it will firt 10x10cm panel perfectly, given that there are no edge rails.
8-bit Busdisplay
