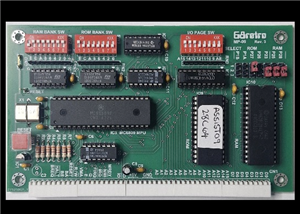

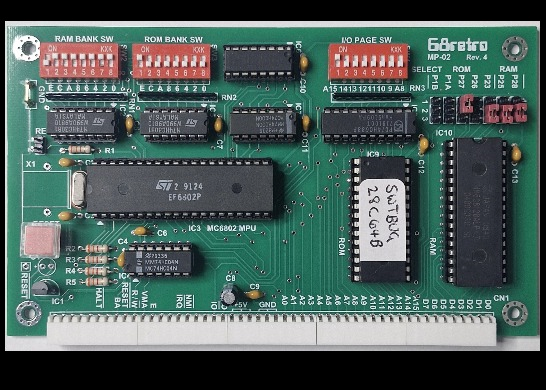

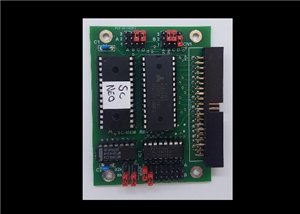

68retro MP-02 MC6802 Processor Board

The documentation, schematics,BOM is on Github '68retro'; Facebook group '68retro'

*Not compatible with SWTPC original hardware*

The SS-50 bus has been changed to reduce the size and make it more suitable for prototyping with breadboard.

-Connector pitch changed to 0.1" from 0.156".

-Change power supply requirement to 5V only.

-Remove the Baud Rate Generator from the Bus.

-Removed data bus buffers.

The connector is the Molex 22-15-2106, I purchase them from Mouser (538-22-15-2106). (Digi-key have them too)

0.1" pin header and female receptacles are a cheaper option but not recommended for more than a few insertion cycles.

Code

https://github.com/crsjones/68Retro

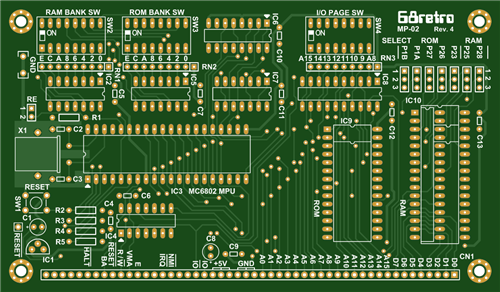

Schematic and Layout

MP-02-04 6802 Processor

MP-02_04Schematic.pdf

Nov 11,2023

1,557 views

68retro MP-02 MC6802 Processor Board

Basic processor board for Motorola MC6802. Influenced by the SWTPC 6800 Computer. Configurable to run many old monitors and software.
