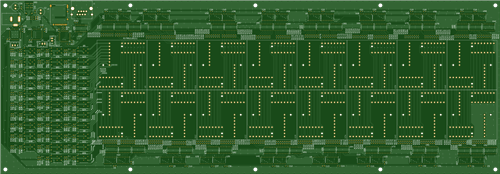

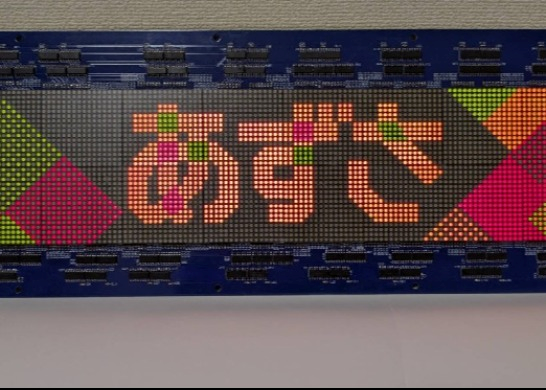

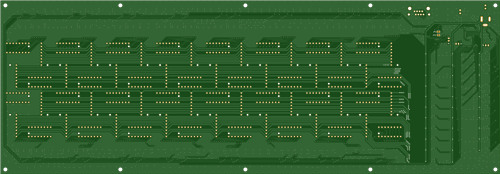

3-color LED electronic display board

We create electronic bulletin boards (direction signs) used on trains, etc. Examples: JR East E231, JR East E217, JR East E127 128x32px
