38mm Rocket Motor

38 mm High-Performance Rocket Motor

Description:

This project is a custom 38mm rocket motor that is built to deliver consistent and efficient thrust for experimental solid rockets. The motor measures 277mm in length and holds four propellant grains, each being 2.25 inches long, and is projected to produce 385N of peak thrust.

Purpose:

I created this motor to install into my high school team's rocket. We wanted to research and experiment with different nozzles and forward closures, and this motor enables us to do so!

CAD-Custom parts and enclosures

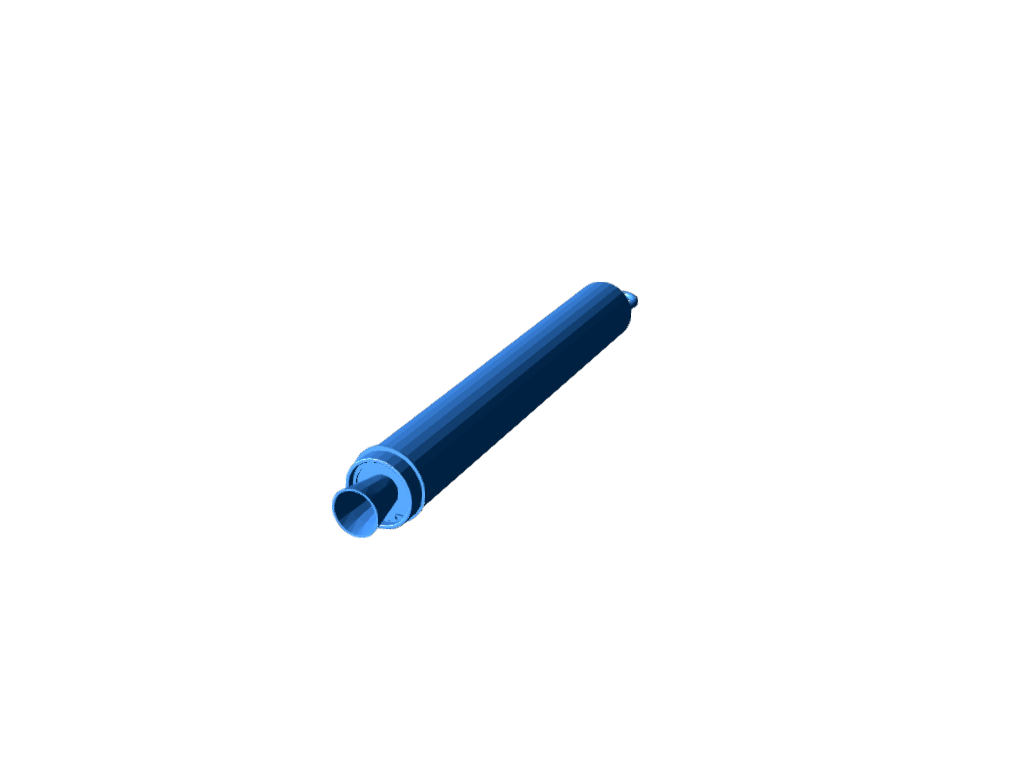

Motor (Assembled)_.step

Oct 26,2025

227 views

38mm Rocket Motor

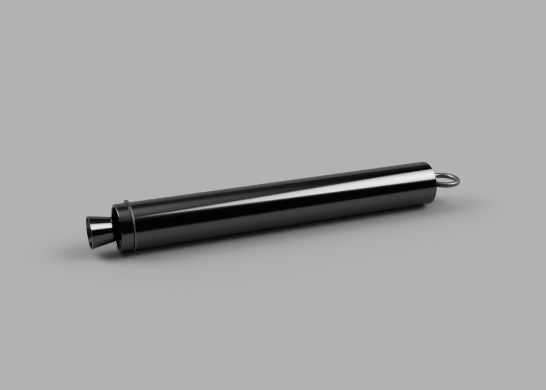

A compact 38mm x 277mm motor that delivers 385 N of thrust! Can hold four 57 mm grains and a 38mm liner.
