KiCad 9.0 |
24-POT-BOARD

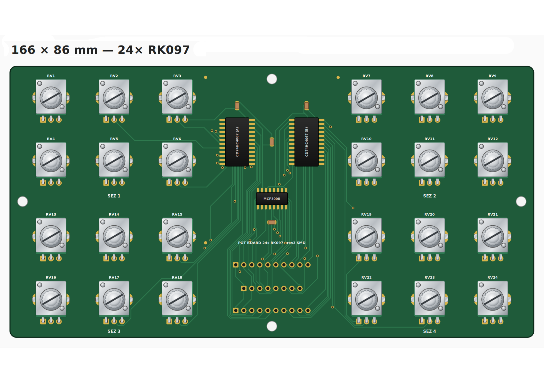

A 24-knob control surface for a Raspberry Pi groovebox: 24 potentiometers in four 6-knob sections, read through two 16-channel analog multiplexers into an MCP3008 ADC over SPI.
One 10-wire header to the Pi, spare channels for buttons, and a clean top side ready for a front panel.
Turning a Raspberry Pi into a hands-on step sequencer / synth / groovebox.
24-POT-BOARD
