su120 Keyboard PCB's

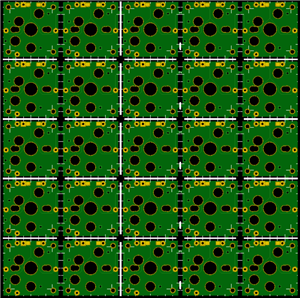

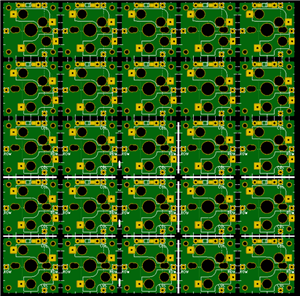

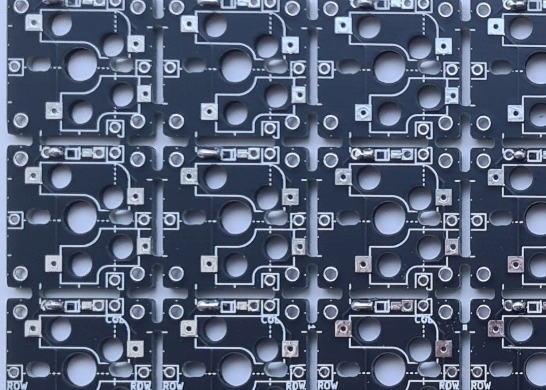

This is a stripped down version of su120 made for easy manufacturing and use with Dactyl Manuform and the Dactyl Cygnus split keyboards and other's like it. These boards are labeled for the row and columns so that they can be easily assembled.
This PCB uses the MX style key switch socket and either the SMD or Through Hole 1N4148 signal diode when building the matrix to control the flow.
- Original su120 github: http://bit.ly/4hO2EV1 Credit e3w2q
- Dactyl Cygnus Github: https://bit.ly/42JmRXK
I did not make this board, I'm just posting it here so other's can find it a little easier for use in their keyboard projects. This is an MIT Licence PCB.
