2

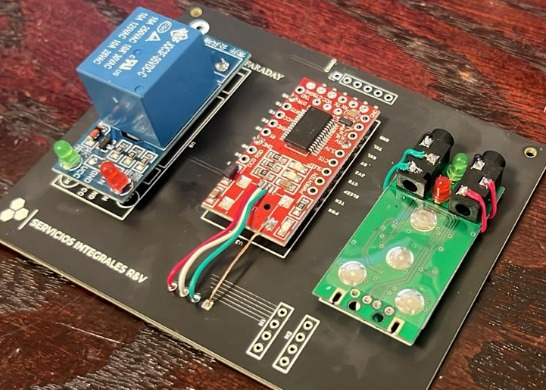

WhatsApp Image 2026-08-27 at 4.30.41 PM.jpeg

Components

	1 Channel Relay Module 5V with optocoupler Support High and Low Level Trigger	x 1
	ftdr 232 usb	x 1
	audio card usb	x 1
	transformador de audio	x 1

Description

simple interface radio/zello actulizado 2026

Plaça interfase para interconectar equipos de radio motorola a sistema zello mediante PC.

se debe anexar filtro de audio en caso de ser necesario

actualización 2026

espero sus recomendaciones

Download Gerbers Download BOM(Bill of materials)

Jun 23,2024

2,547 views

simple interface radio/zello actulizado 2026

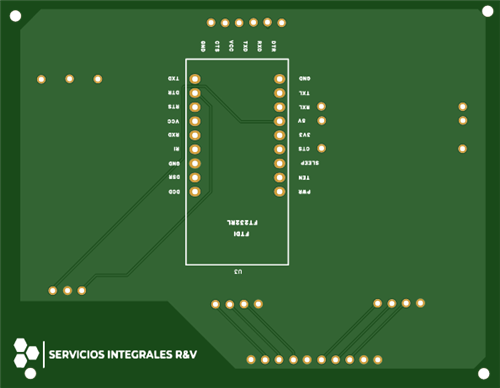

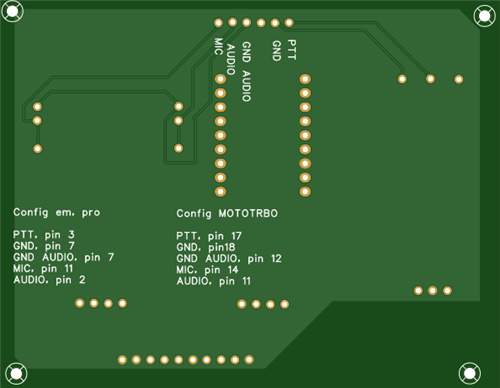

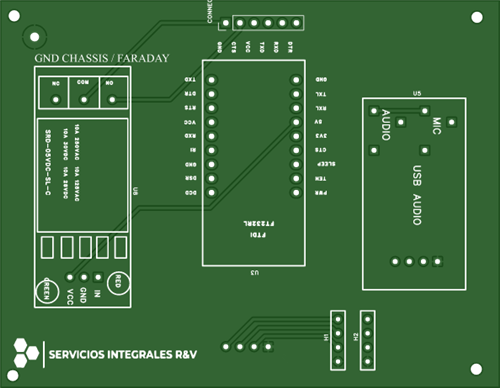

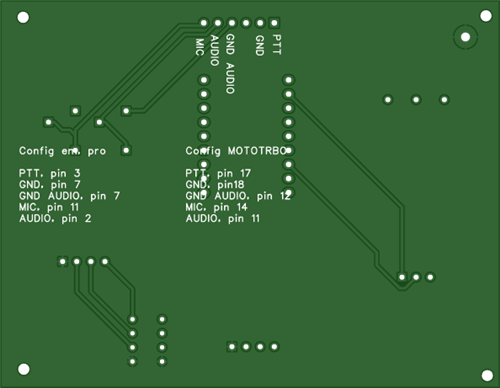

2 Layers PCB 70 x 90 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen

simple diseño para controlador de radio motorola a zello (solo placa, elementos se compran por separado) espero sus recomendaciones

2547

Published: Jun 23,2024

Standard PCB

Download Gerber file 40

BOM(Bill of materials)

PCBWay Donate 10% cost To Author

File Last Updated: 2026/08/27 (GMT+8)

File update record

2026-08-2723:42:52

Gerber file is updated.

2025-05-1914:01:40

Gerber file is updated.

2024-06-2409:52:00

Parts List (BOM) is updated.

2024-06-2318:58:10

Gerber file is updated.

2024-06-2318:25:46

Gerber file is updated.
