Introducing: The BeagleLogic Cape
BeagleLogic realizes a logic analyzer on the BeagleBone / the BeagleBone Black using the Programmable Real-Time units and matching firmware and Linux kernel modules on the BeagleBone Black.

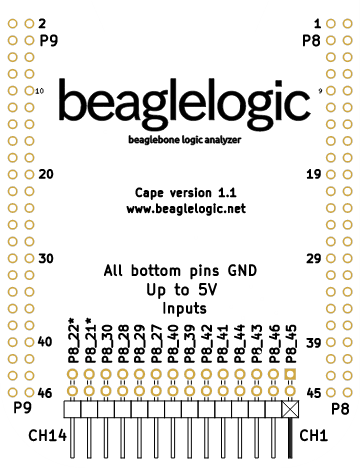

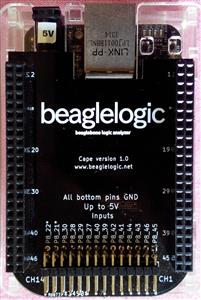

After coding up the BeagleLogic project, I thought that it would be great to have an add-on cape for the project that provides buffering and also makes the inputs of the BeagleBone Black tolerant to TTL logic voltage levels (up to 5.5V) allowing BeagleLogic to debug external projects with ease.
